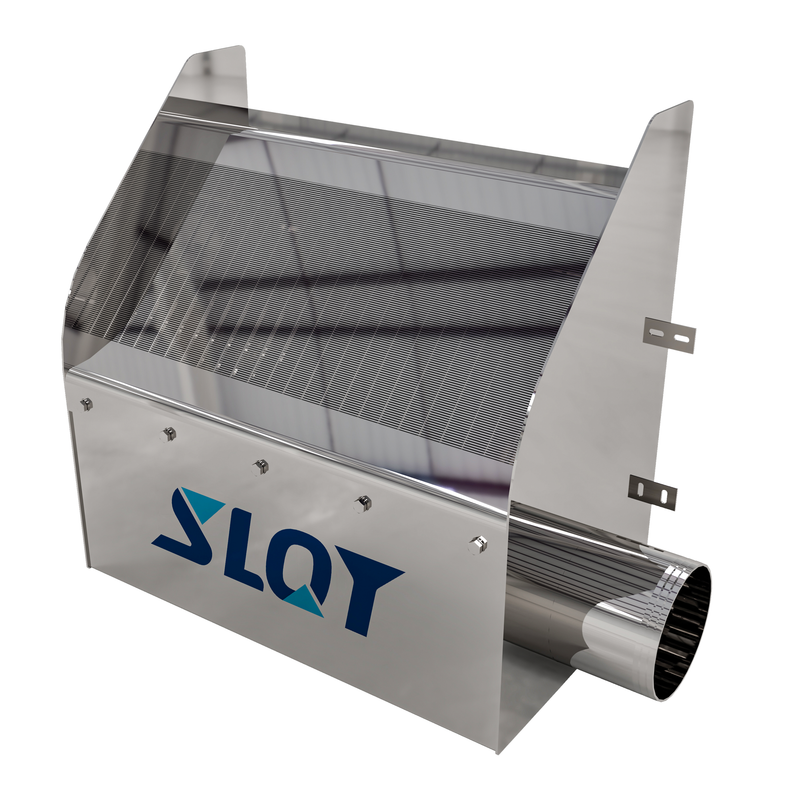

Coanda Intake Screen

Availability:



Coanda Intake Screen is also called Coanda Hydro Screen,provide self-cleaning with the special geometry based on the Coanda Effect.It can prevent the sediment,sticks,rock,and dirt with the small-sized openings with no-moving parts and no power requirement.
Inquire

Brand:
SLOT

coanda screen wastewater treatment screen coanda filter screen coanda intake box Intake Screen river intake screen elgin coanda box

Product Description

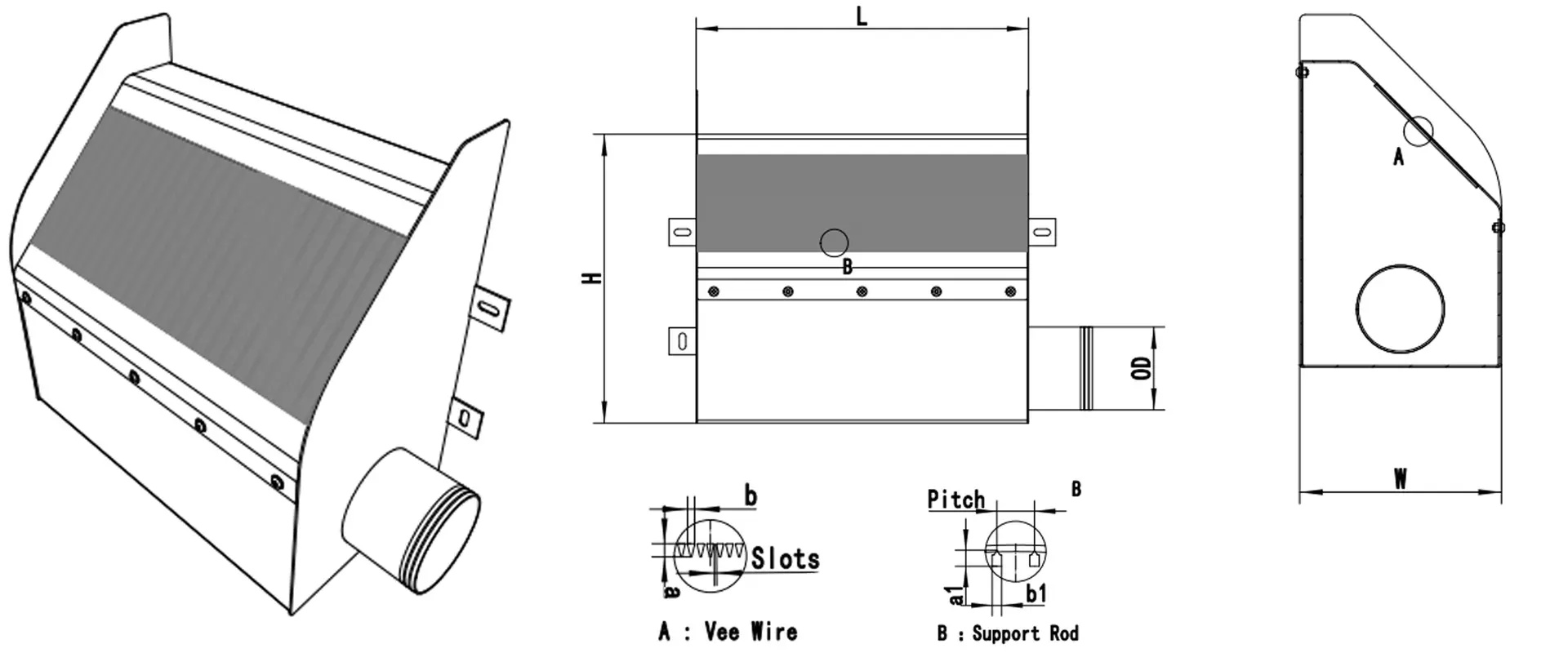

weibia2252552oti-1920-1920_看图王

Product Parameters

Material:Stainless steel 304,316,316L.
Slot size(aperture):1.0 mm,1.5 mm or as your need[0.1-2mm].
Profile wire tilt angle:5 degrees,7 degrees or as your need.
Types:Screens with integral sumps.

We can customize the gap and overall size of the wedge mesh according to the application scenario.

MODEL	CAPACITY FT3 /S	CAPACITY LITERS/ S /PC	DEPTH IN (MM)	WIDTH IN (MM)	HEIGHT IN (MM)	WEIGHT LBS (KG)
SL0.10-1	0.10	2.83	8 (203)	12 (305)	11 (279)	20 (9.1)
SL0.20-1	0.20	5.66	8 (203)	24 (610)	11 (279)	33 (15)
SL0.25-1	0.25	7.08	15 (381)	12 (305)	22.5 (572)	57 (26)
SL0.50-1	0.50	14.2	15 (381)	24 (610)	22.5 (572)	80 (36)

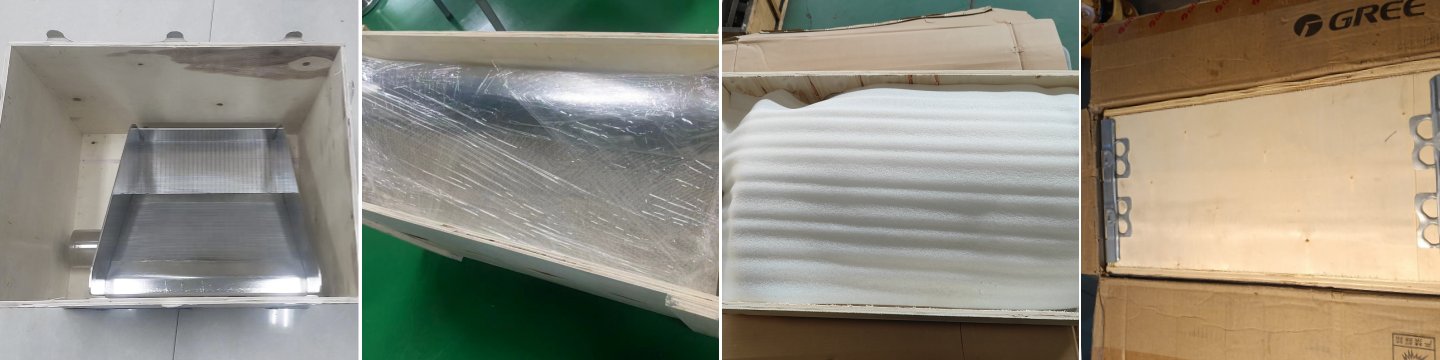

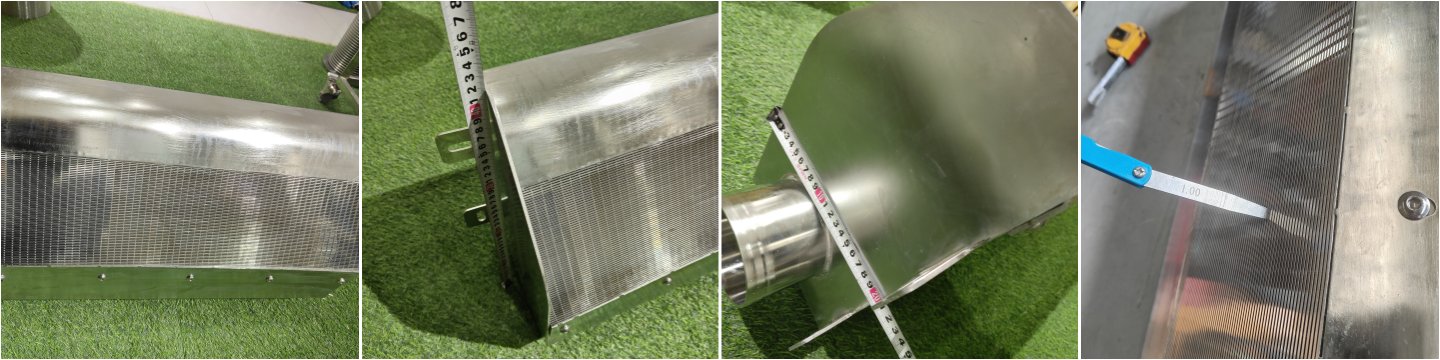

Products & QC Photos

Product Advantages

Coanda Hydro Screen is an effective solution to get clean water for a wide range of applications. In terms of filtration and usage Water Screen provides significant advantages listed below:

No-power requirement
Effective cleaning with outstanding capacity
Long service life with negligible operational cost
Self-Cleaning
Low maintenance costs.
No moving parts required.
High flow characteristics of wedge wire.
Wear and corrosion resistance
It can also work normally at low temperatures and is not affected by the environment.
It does not cause damage to fish stocks.

Application

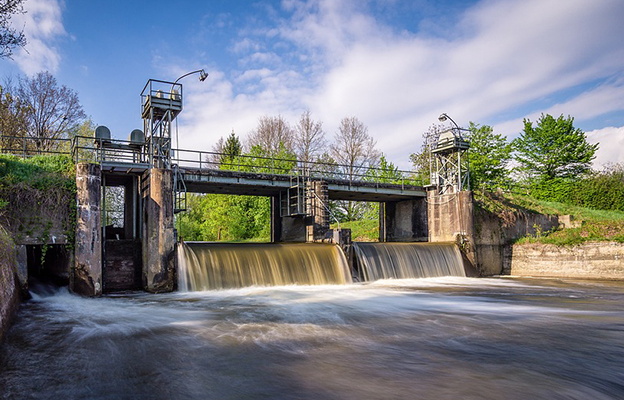

Hydropower

The most popular and effective way for the Coanda Intake Screen, also called hydropower screen, is using it for the Hydroelectric Plants – Hydropower energy. Coanda Water Screen prevents harmful materials, sediment in the intake process, and provides clean water. Thus, turbine blades in hydropower plants can operate for longer without being damaged. Thus, the Coanda Intake Screen operates long years with negligible maintenance and with no moving parts.
Waste Water Treatment

Coanda Intake Screen can provide clean water in municipality
applications such as sewage treatment.Efficient filtration of fluid-liquid separation helps for the sewage treatment applications with no power requirement.
Agriculture

Coanda Intake Screen is preferred for agricultural application for example to feed plants with clean water. Coanda Water Screen prevent sediment, sticks, soil from the water channel. Thus, gives a significant solution for agricultural applications where clean water is required. In agriculture, the Coanda box screen is also used for portable filtration.
