MDI Flip-Flow Screen Panel

Availability:



Crafted with precision, the Relaxion Screen boasts a telescope-like polyurethane cool rubber material, designed for durability and flexibility. In operation, the screen alternates between contraction and relaxation, inducing a forward bouncing motion in the material, effectively preventing clogging and ensuring smooth, uninterrupted screening. Thanks to the innovative flexible sieve plate, the projectile acceleration reaches 30-50 times the acceleration of gravity, with an impressive maximum amplitude of 40mm. This design not only prevents blockages but also enhances screening efficiency, delivering a high processing capacity with minimal dynamic load, reduced power consumption, and low noise levels.
Inquire

polyurethane mesh Polyurethane Flip Flow Screen Flip Flow Screen PU Flip Flow Screen Mesh

Product Description

Polyurethane Flip Flop Screen Mats have been meticulously utilized for decades, offering an exceptional solution for the screening of moist or humid materials. Crafted from highly resilient materials, these flip flow mats boast unparalleled durability, maintaining elasticity and dimensional precision even under deformation. They are ingeniously crafted, to seamlessly accommodate both bolting and clamping systems, ensuring adaptability across all screen decks globally, irrespective of machine brand, deck dimensions, or
installation features.

Specification

MDI Flip-Flow Screen Panel

Aperture	10 × 30 mm, 3/6/13/25 × 25 mm (customizable)
Open Area	42% – 60%
Screen Size	4420 × 328 mm, 3800 × 328 mm, 2200 × 355 mm (customizable)
Material	polyester type and polyether type
Hardness	80-90A
Thickness	45%-47%
Aperture Type	Ellipse/Slot

Product Features

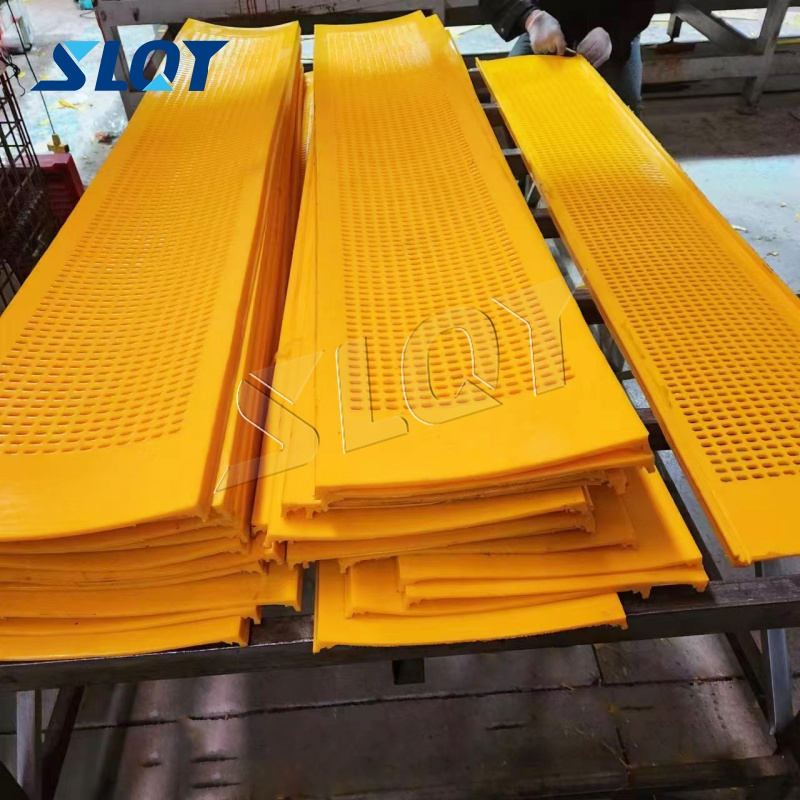

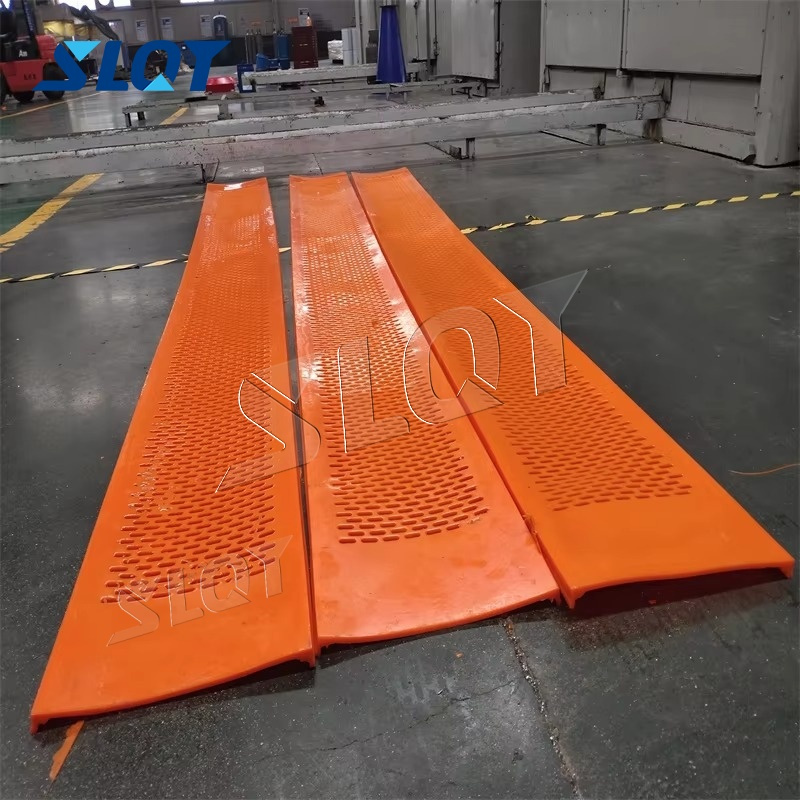

PU Flip Flow Screen Mesh66 PU Flip Flow Screen Mesh55

1. Our Flip Flow Screens are crafted using premium raw materials, offering exceptional wear resistance and an extended service life.

2. With outstanding toughness, our Flip Flow Screens surpass the resilience of typical polyurethane meshes.

3. Utilizing mold casting techniques, our Polyurethane Flip Flow Screens can be customized with various hole sizes to match specific requirements.

4. The Polyurethane Flip Flow Screen is generally 4-8mm thick, making it lightweight and reducing the load on the sieve machine.

5. These screens achieve rapid high-frequency expansion and contraction, effectively sorting materials without the risk of material buildup even under intense operational conditions.

6. With an exceptionally high hole rate, our Polyurethane Flip Flow Screens offer superior processing capacity per unit area, ensuring high screening efficiency.

Product Application

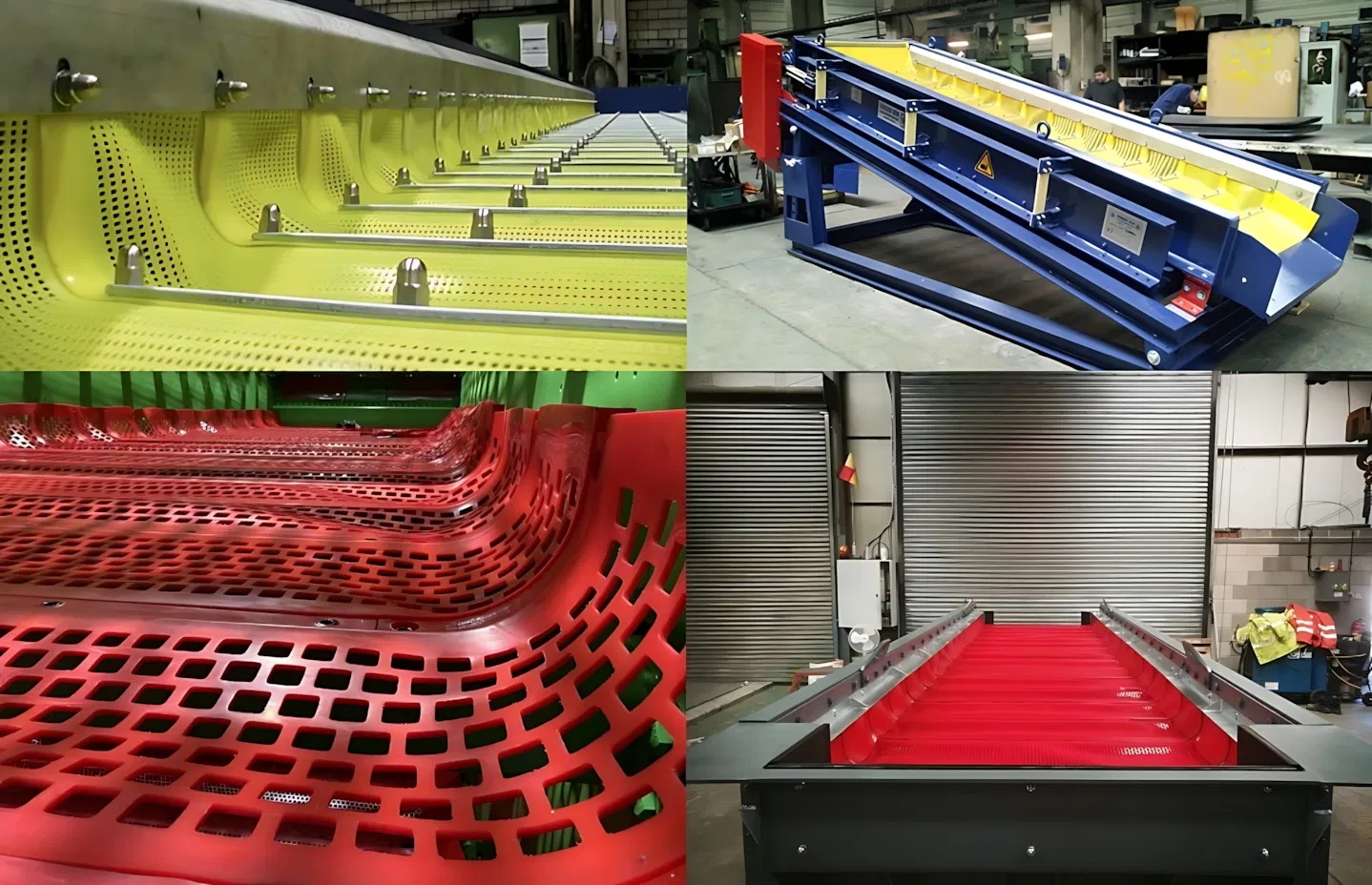

Mineral-Vibrating-Screen-Mesh-Mdi-Flip-Flow-Screen-Panels-PU-Flip-的订单Screen-Mats_看图王

Our Polyurethane Vibrating Screens are versatile in classifying bulk materials like coal, minerals, coke, and beans, making them ideal for use across agriculture, chemical, mineral processing, quarrying, and smelting industries.

Engineered for versatility, the Polyurethane Vibrating Screen excels in sorting wet materials, making it indispensable in water conservancy, hydropower, and dewatering industries.

Achieve efficient screening of challenging, sticky, or wet materials with separation cuts ranging from 0.2 to approximately 50 mm effortlessly.
