Polyurethane Fine Mesh

Availability:



Tensioned polyurethane fine screen meshes (sometimes referred to as polyurethane high frequency screen mesh) are made of polyurethane sheet with high density opennings. They enioy a very smooth screen surface to ensure the screening efficiency. They are equipped with hooks which can be polyurethane or metal to tension the whole mesh. There are various customized polyurethane colors, such as red,orange green, yellow, black.
Inquire

Polyurethane Fine Mesh urethane screen panels Polyurethane Fine Screens polyurethane mesh

Product Description

Tensioned polyurethane fine screen meshes (sometimes referred to as polyurethane high frequency screen mesh) are made of polyurethane sheet with high density opennings.

They enioy a very smooth screen surface to ensure the screening efficiency.

They are equipped with hooks which can be polyurethane or metal to tension the whole mesh. There are various customized polyurethane colors, such as red,orange green, yellow, black.

Specification

Aperture: 0.063–1.5 mm (customizable)
Screen Size: 1045 × 700 mm, 840 × 1245 mm, 1000 × 2320 mm, 1200 × 2320 mm (customizable)
Material: Polyurethane materials are divided into polyester type and polyether type, with specific parameters as follows:

Polyurethane Material Parameters
NO	Inspection Item	Polyester Type
1	Hardness/Shore A	80±2	85±2	90±2	95±2	90±2	95±2
2	Tensile strength/MPa	≥ 40	≥ 43	≥ 46	≥ 48	≥ 30	≥ 40
3	Elongation at break/%	≥ 600	≥ 580	≥ 550	≥ 500	≥ 400	≥ 300
4	Tear strength/(kN/m)	≥ 70	≥ 75	≥ 85	≥ 100	≥ 75	≥ 90
5	Resilience/%	≥ 25	≥ 25	≥ 25	≥ 25	≥ 35	≥ 35
6	Relative volum ewear/mm3	≤ 60	≤ 60	≤ 60	≤ 60	≤ 40	≤ 40
*Special requirements can be negotiated for customization.

Product Features

1.Fine wear resistance and long service life.
2.Easy installation and quick maintenance.
3.Cost-effective.
4.High screening efficiency with moisture-proof performance and freedom from adhesion of wet particles.
5.Anti-corrosion,non-flammable, nontoxic and tasteless.
6.High sieving yield with low block rate.
7.Fine vibration absorption performance with lower noise emission.
8.Good self-cleaning performance, due to the characteristics of the secondary vibration of polyurethane.

3a9c8992-eedb-4e3a-a16f-8dcfa7c0c9db_看图王 f6d68f4e-c64d-4dab-a3ed-cfb15dbd6e6c_看图王

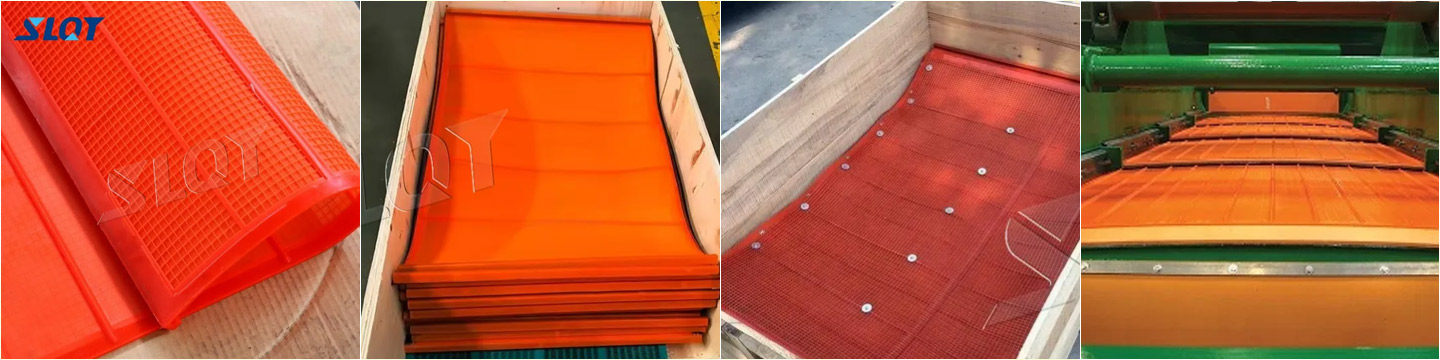

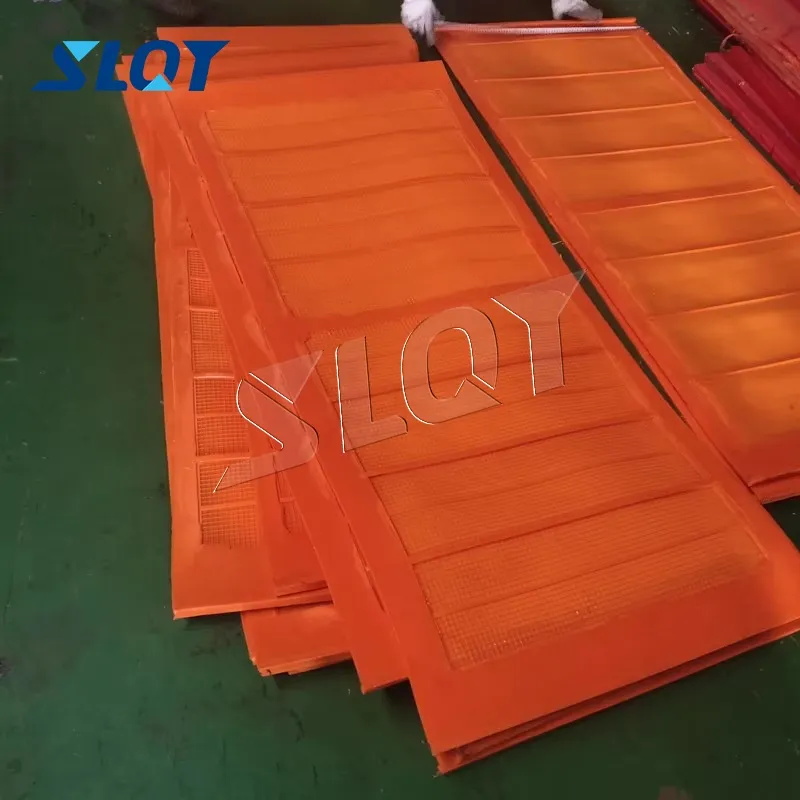

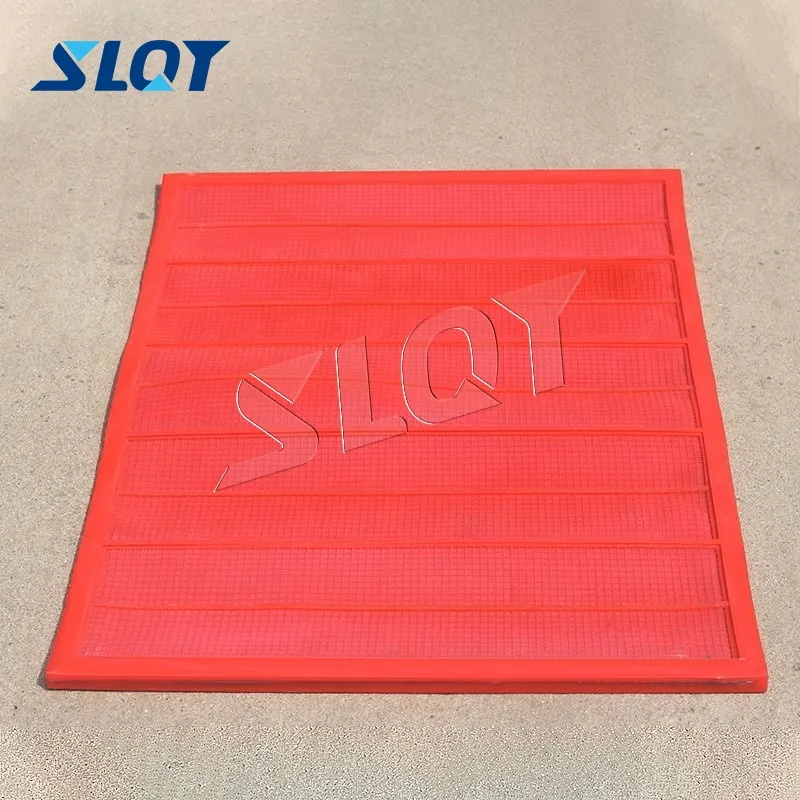

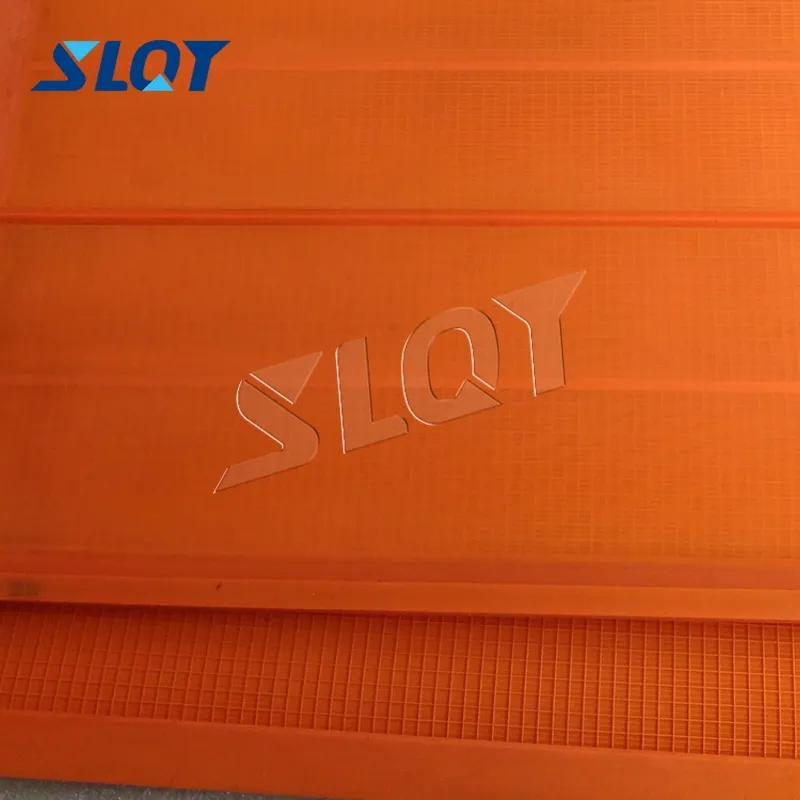

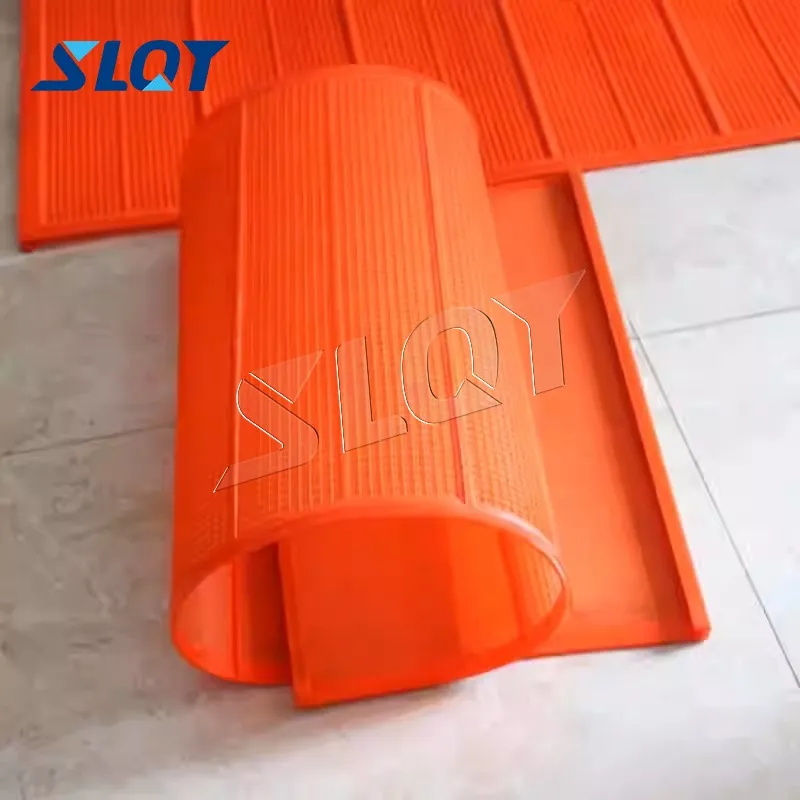

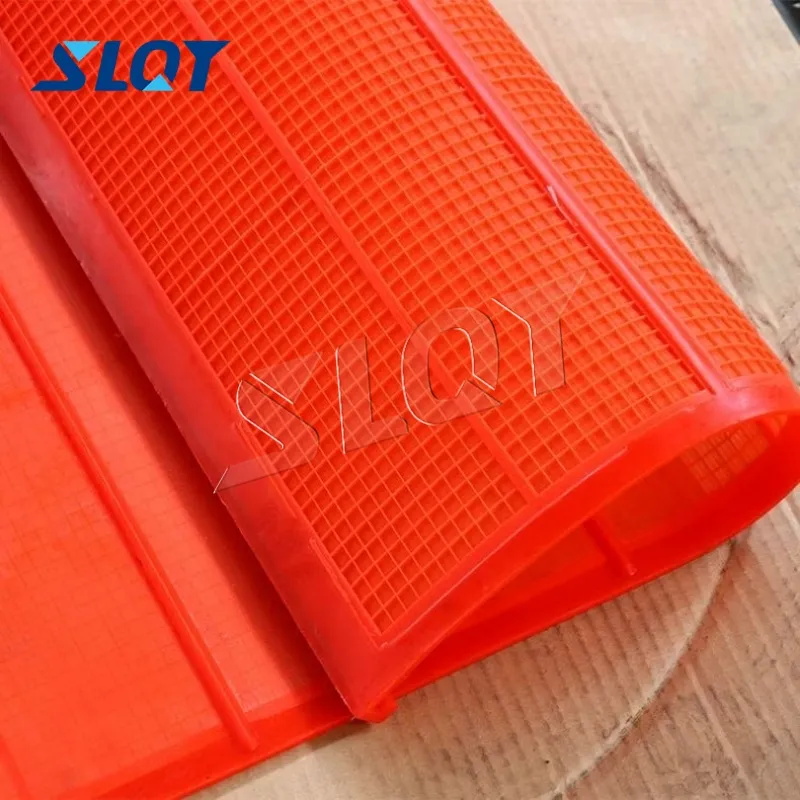

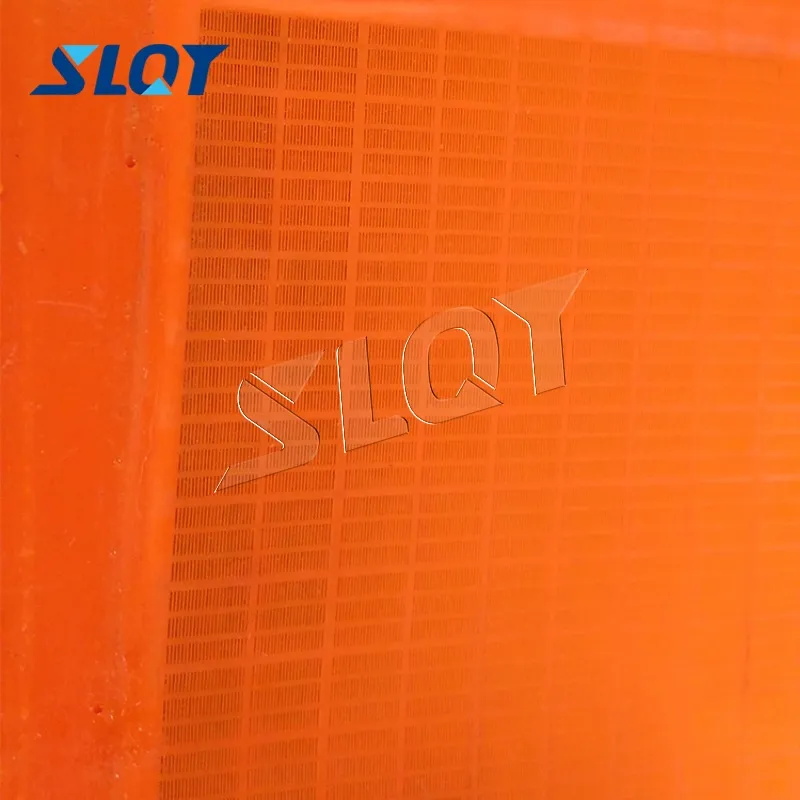

Products & QC Photos

Product Application

Polyurethane fine screens are widely used in industries such as mining, chemical, metallurgy, and construction.

They can be used in conjunction with various electromagnetic vibrating high-frequency screens, composite vibrating high-frequency screens, and stacked high-frequency screens, making them particularly suitable for the precise screening of fine-grained materials.
