Polyurethane Modular Panel

Availability:

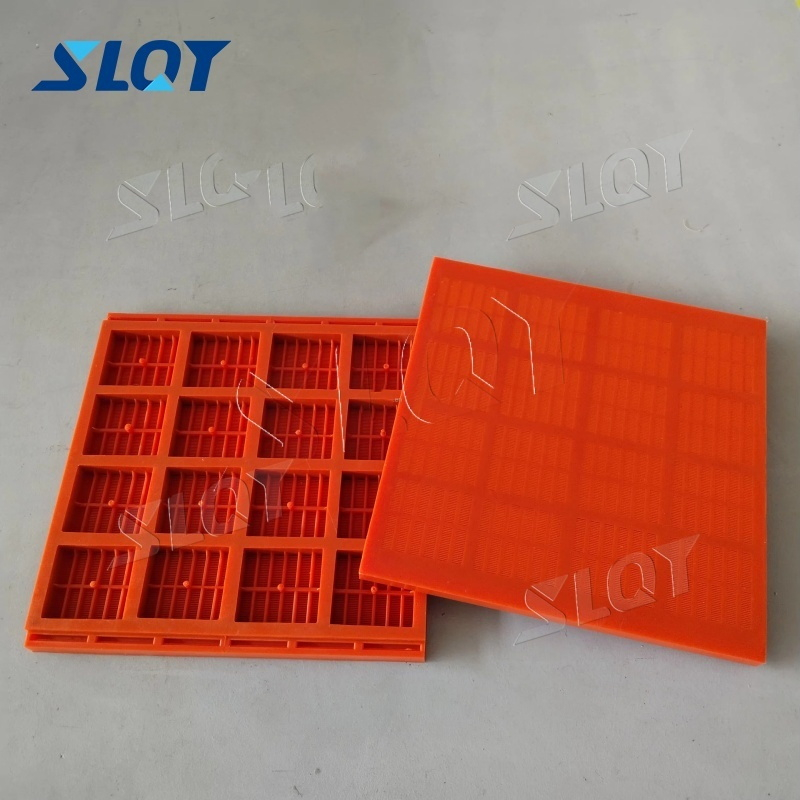

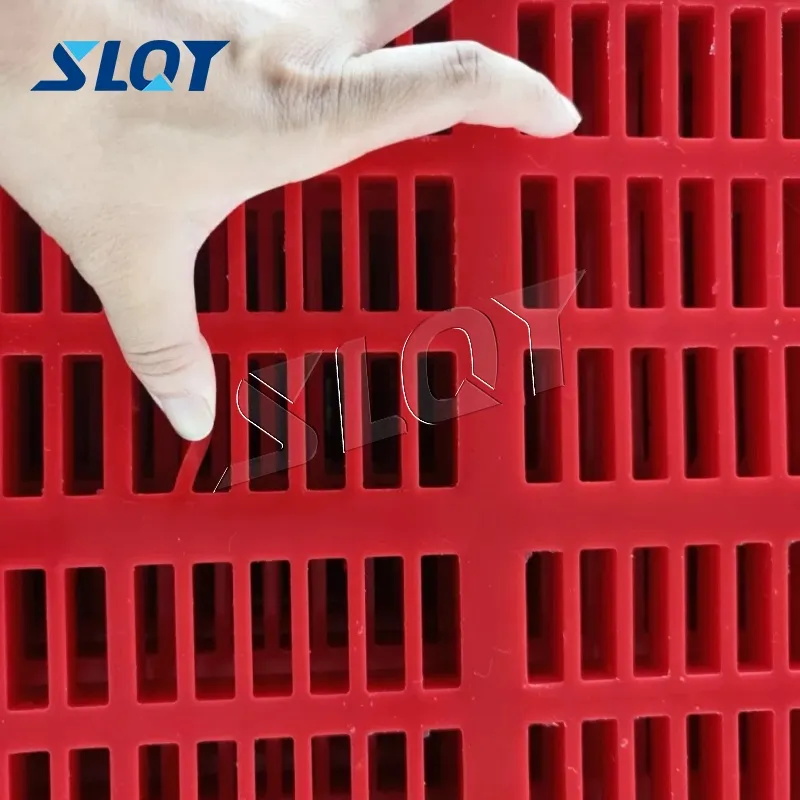

Polyurethane modular screen panels are vital elements of vibrating screens, crafted from specially formulated polyurethane. These panels are meticulously cast and injected into precision-molded plates embedded within durable steel frames. They offer exceptional cost performance, unparalleled screening efficiency, and remarkable flexibility of use.
Inquire

Modular screen mesh Modular Polyurethane Screen Panels POLYURETHANE SCREEN MODULES

Product Description

Polyurethane modular screen panels are vital elements of vibrating screens, crafted from specially formulated polyurethane. These panels are meticulously cast and injected into precision-molded plates embedded within durable steel frames. They offer exceptional cost performance, unparalleled screening efficiency, and remarkable flexibility of use.

A diverse range of panel types and sizes with varied apertures can be meticulously combined to function harmoniously on a single screening surface. This strategic combination maximizes screening efficiency while simultaneously minimizing capital expenditure.

Specification

PU Modular Screen Panels

Aperture	0.3 mm – 160 mm (customizable)
Aperture type	round, square or rectangular.
Thickness	30–50 mm(customizable)
Connection type	mosaic, bolt, layering(depression bar).
Material:	polyurethane with steel frame embeded in.
Thickness	45%-47%
Aperture Type	Ellipse/Slot

Product Features

PU Modular Screen Panels

*Featuring embedded reinforcing ribs, these panels adeptly transmit the screen body's vibration force and significantly bolster the screen panel's load-bearing capacity, thereby extending its service life.
*Thanks to their modular design, these screen panels offer the freedom of replacement at any time, which optimizes screen panel utilization and effectively reduces on-site storage and associated costs.
*Exhibiting outstanding wear resistance and shock absorption, these panels maintain high elasticity and precision in screening. They consistently deliver stable performance even in high-impact environments.

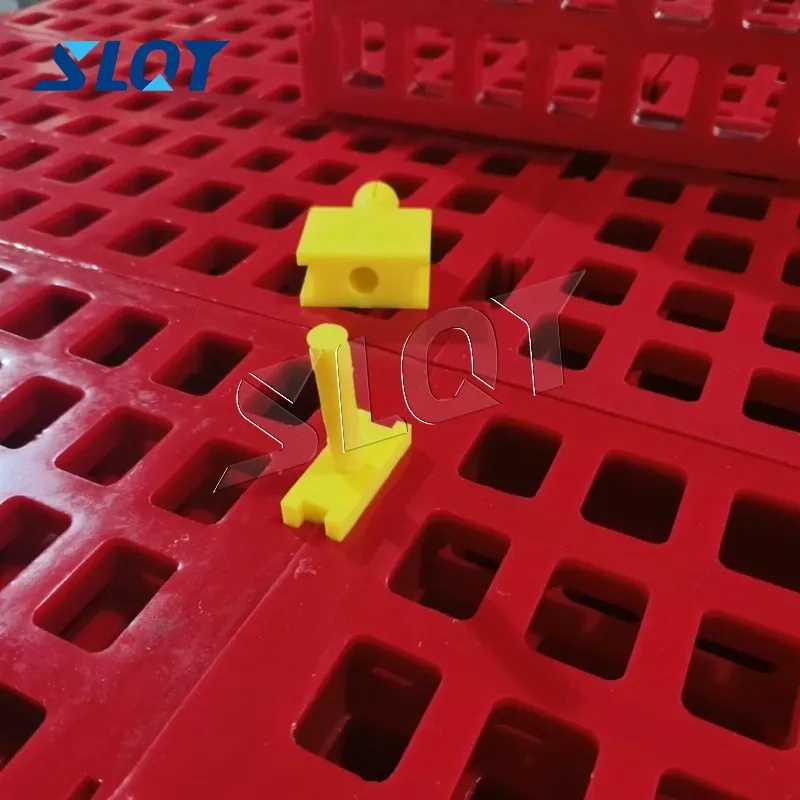

*The innovative buckle structure facilitates swift and straightforward installation and replacement of screen panels, ensuring robust connection strength. This enhances work efficiency while reducing labor demands.
*Tailored to specific screening requirements, these panels can be customized with various opening shapes to meet precise on-site process specifications.

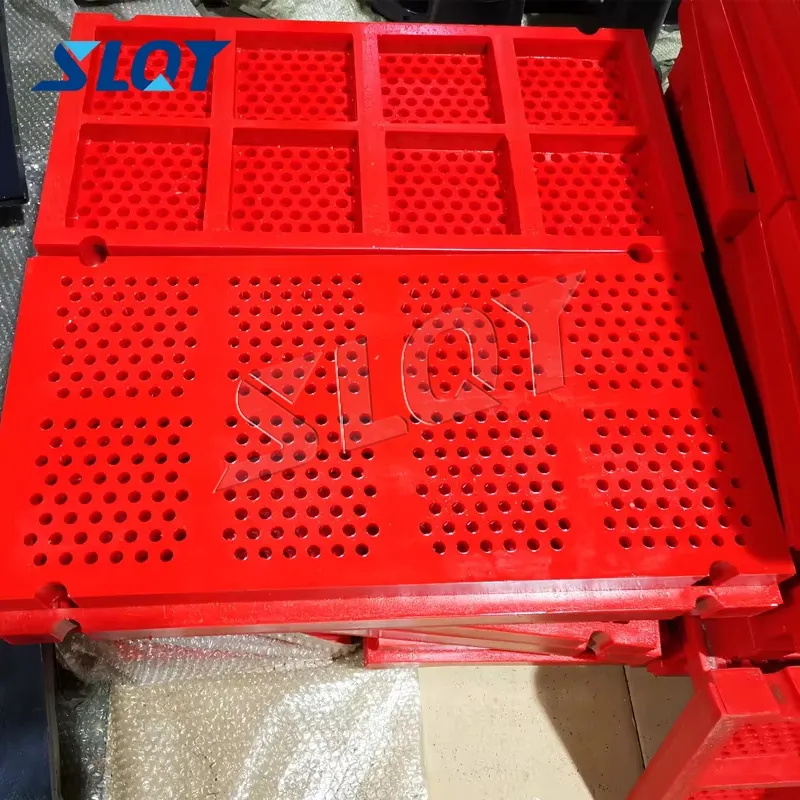

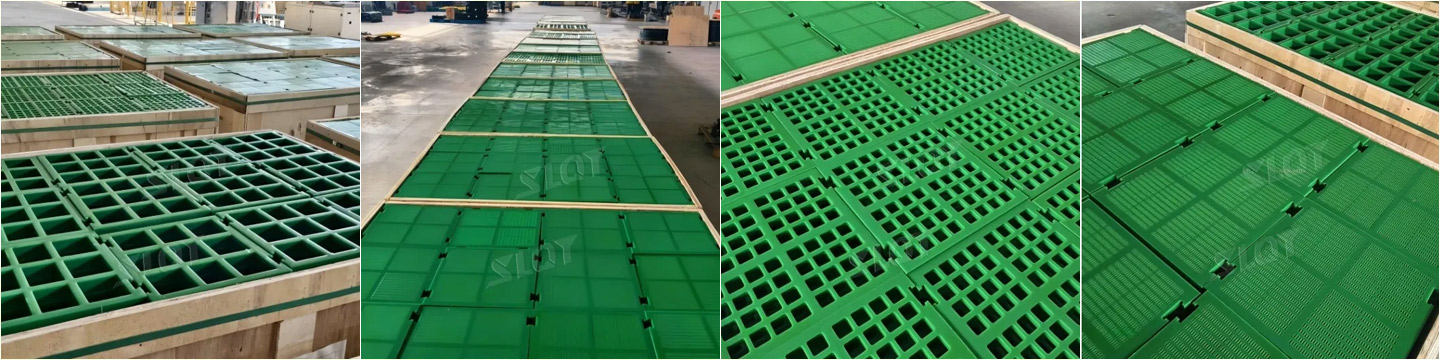

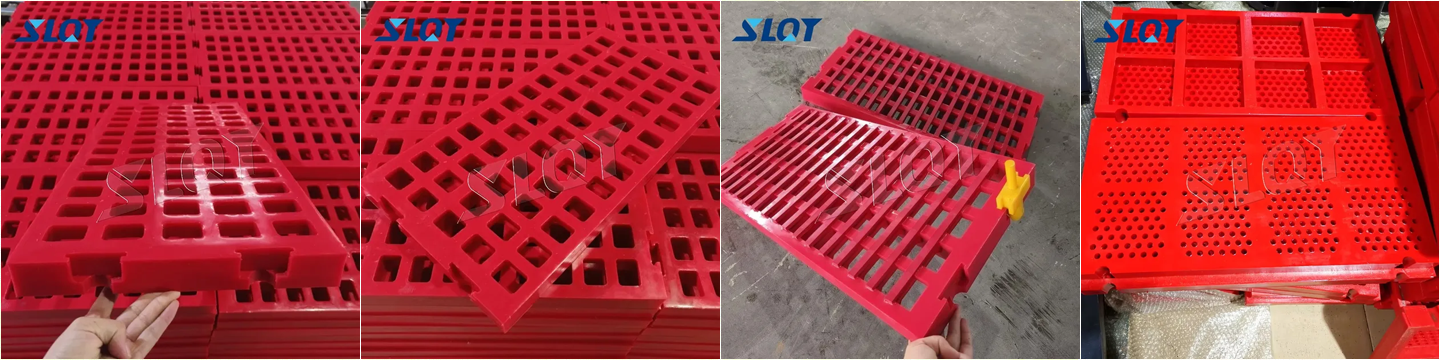

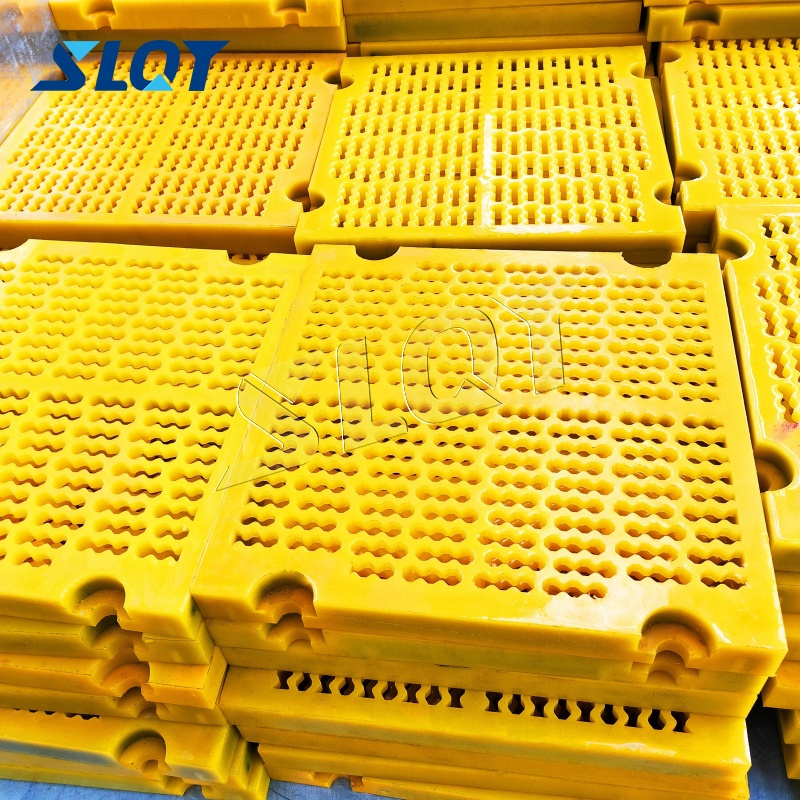

Products & QC Photos

Product Application

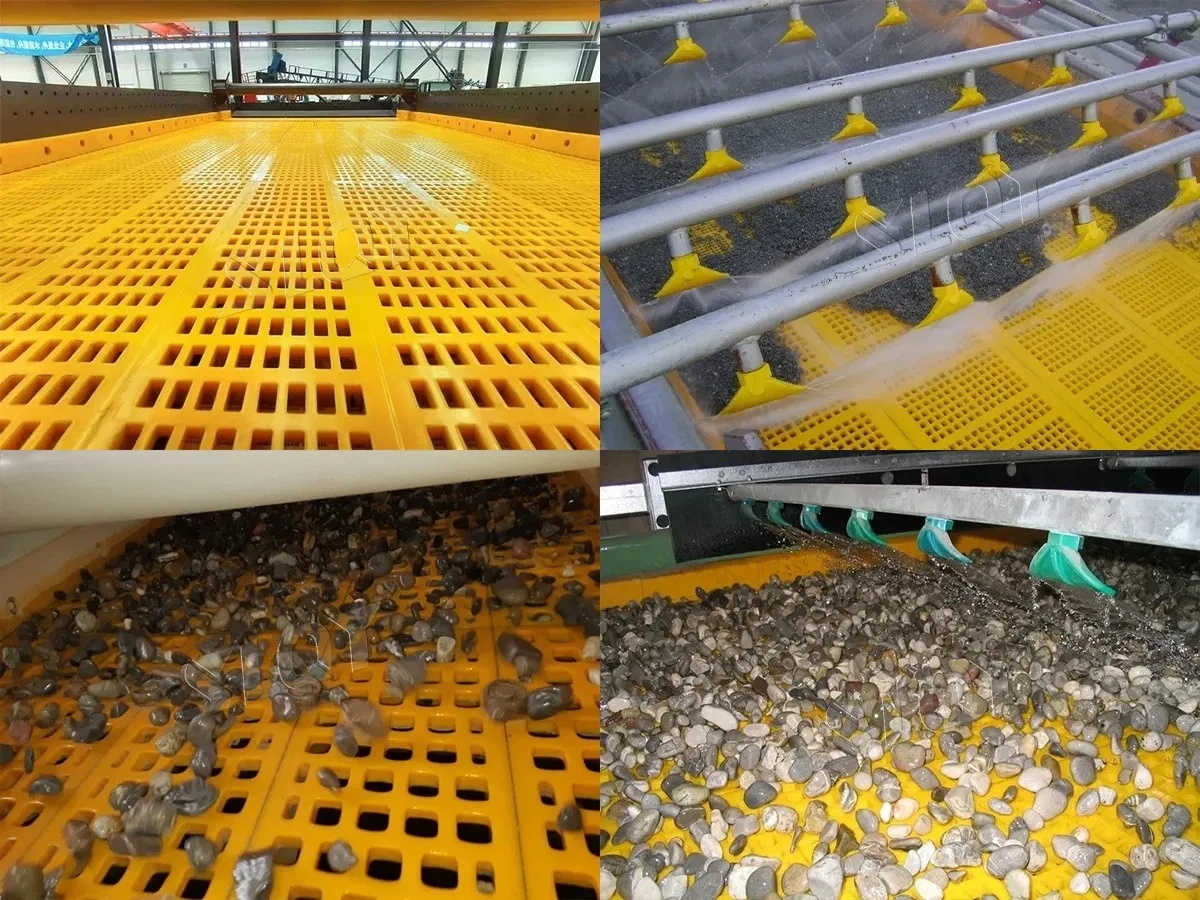

Polyurethane modular screen panels are perfectly suited for washing, screening, and grading medium-sized objects. They serve as indispensable components in all mainstream vibrating screens.

Their application scope is vast, spanning ferrous and nonferrous metallurgy (including iron ore, manganese ore, lead zinc ore, limestone, fluorite), cooling blast furnace slag, coke, coal chemicals, construction materials, water and electricity projects, abrasive waste management, quarries, and more.

Wear-Resistance-Screen-Mining-PU-Modular-Screen-Panels-Vibrating-Screen33-Mesh_看图王
