Pressure Arc Screen

Availability:



Pressure arc screen, also known as the pressure arc sieve bend screen, DSM Sieve Bend Screen, is an advanced screening equipment with a wide range of uses, it applied in starch processing for multi-stage counter-current rinse. In starch production process, it is used to separate starch from germ and fiber, and is an important process in starch production.
Inquire

Model:

starch pressure arc screen Fiber Washing Screen Pressure arc sieve bend screen Starch Pressure DSM Screen Parabolic screen static sieve bend screen fiber dewatering screen pressure curved screen Wedge Wire DSM Screen DSM Sieve Bend Screen

Product Description

Pressure arc screen, also known as the pressure arc sieve bend screen, DSM Sieve Bend Screen, is an advanced screening equipment with a wide range of uses, it applied in starch processing for multi-stage counter-current rinse. In starch production process, it is used to separate starch from germ and fiber, and is an important process in starch production.

The pressure arc screen is a static and efficient screening equipment. It separates and grades wet materials by pressure. Its screen surface is processed by special processing methods and is highly polished. The screen surface is smooth and even. The screen wire has a sharp edge and extremely high wear resistance. When the starch milk with a certain pressure flows quickly through the screen surface, there is no fluctuation or splashing. fac41cbed39e780e6a0a3f353f5a329

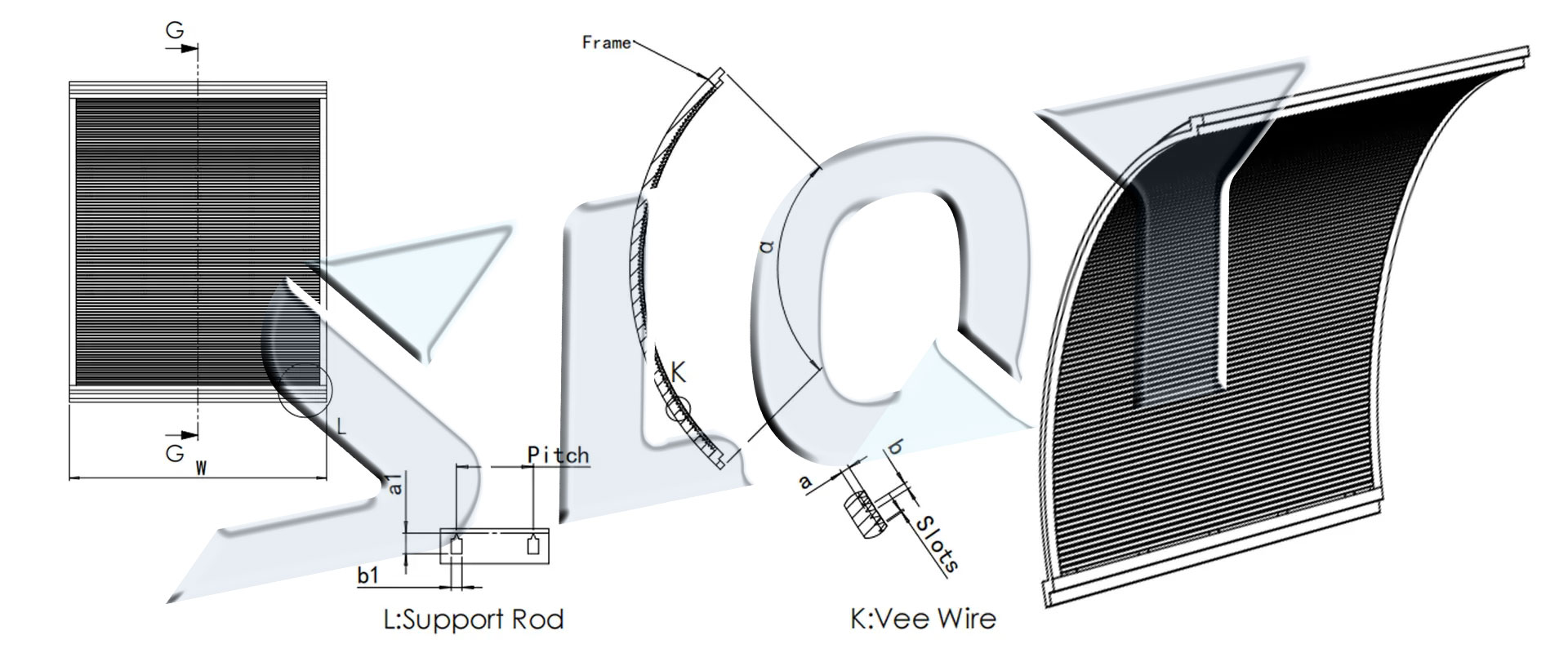

Product Specifications

Screen Arc Angle: 120°

Material Standard: ASTM 316L

Slot Size: 50 μm, 75 μm, 100 μm, 120 μm, 150 μm, 200 μm,or customized

Surface wedge wires: 10s, or customized.

Support rods: SLT-25, or customized.

Screen width: 585 mm, 710 mm,730mm, 825 mm or customized.

Screen Arc Length: 1595 mm

Screen Arc Radius: 762 mm

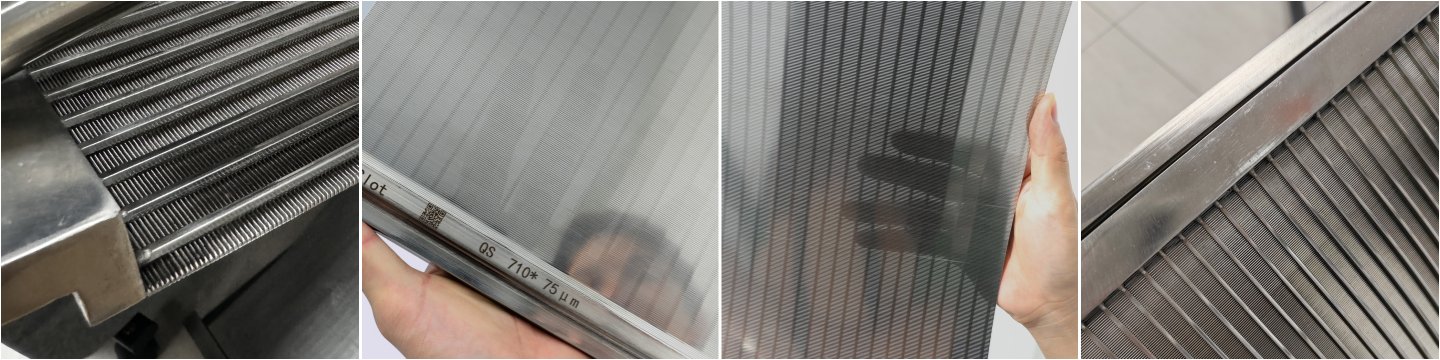

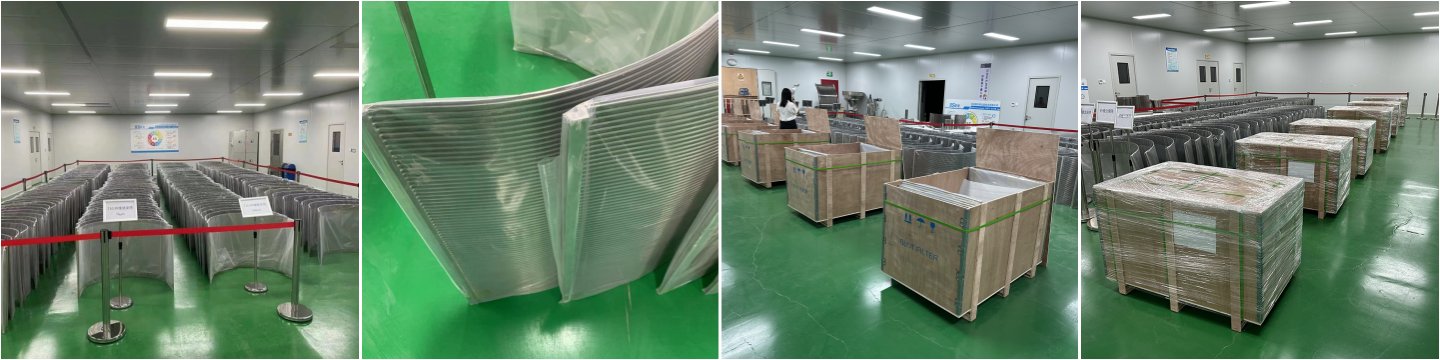

Products & QC Photos

Working Principle of DSM Sieve Bend Screen

The starch emulsion is sprayed from the nozzle to the screen surface at a certain pressure and a certain spray speed. The starch emulsion is sprayed to the screen surface along the tangent direction of the arc screen surface, and then quickly spreads, evenly covers the screen surface and quickly flows through the screen surface. The flow direction of the starch emulsion is at right angles to the screen slit.

The starch emulsion is subjected to the combined effects of centrifugal force, impact force, gravity and the cutting force of the screen wire edge on the starch emulsion on the concave arc screen surface.

The wedge-shaped screen wire is like a sharp knife. Under the starch emulsion, the starch emulsion impacts the sharp blade of the screen wire. The starch is scraped into a thin liquid layer. The liquid layer and fine particles quickly pass through the narrow and small screen slits and enter the bottom flow to form the undersize; while part of the liquid layer and coarse particles flow through the screen surface, become the oversize, and flow out from the overflow port.

Product Advantages

No clogging
Easy to clean
High filtration accuracy
Large opening area,high capacity and high flow
Higher strength and durability

What are some of the most common problems?

1.Screen surface wears too fast

1

Starch emulsion has high sand content

2

Feeding nozzle pressure too high

3

The aperture of the nozzle is small

4

The aperture of the nozzle is small

2.The screening effect is not ideal

1

Feeding nozzle pressure too low

2

Feeding nozzle pressure too low

3

The aperture of the nozzle is big

4

The feeding direction is not tangent to the screen arc

Applications

With the special arc shape and high efficient filtration accuracy, it is often used in starch processing line ,such as corn starch , cassava starch processing , potato starch , wheat starch etc .,it is an ideal separation sieve for the wet material .
Mainly used for :
· Corn starch-fiber separation
· Corn fiber washing
· Corn germ washing
· Cassava starch processing
· Potato starch processing
· Wheat starch processing

Pressure Arc Screen
