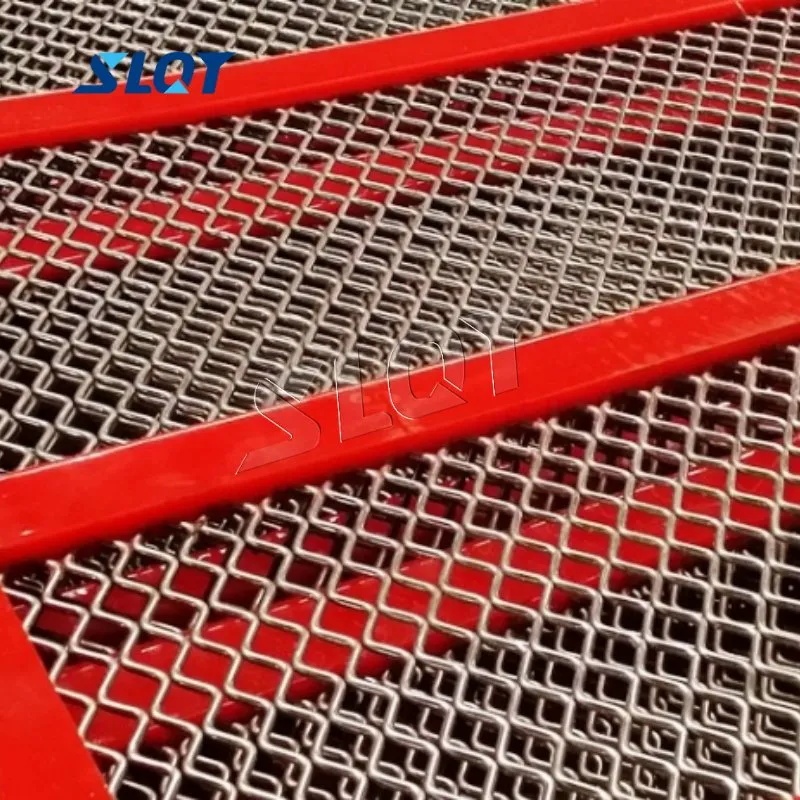

Self-cleaning screen featuring molded rubber strips that hold high-strength wires in place. Providing better screening action than traditional woven wire and greater open area than polyurethane, this screen media is designed to boost production by reducing costly, time-consuming blinding and pegging problems, while also delivering superior wear life. Diamond, Herringbone, and Straight wire slot openings for maximum output in a variety of dry or wet applications. | |||||||||
Self-cleaning screen featuring molded rubber strips that hold high-strength wires in place. Providing better screening action than traditional woven wire and greater open area than polyurethane, this screen media is designed to boost production by reducing costly, time-consuming blinding and pegging problems, while also delivering superior wear life. Diamond, Herringbone, and Straight wire slot openings for maximum output in a variety of dry or wet applications.
77-81Aperture(mm) | Wire diameter(mm) | Weight(kg/m2) | Open area(%) |
1.50 | 1.20-1.60 | 4.7-6.8 | 31-38 |
2.00 | 1.20-1.60 | 4.3-6.2 | 37-43 |
3.00 | 1.20-2.00 | 3.6-7.8 | 40-52 |
4.00 | 1.20-2.00 | 3.1-6.9 | 45-58 |
5.00 | 1.50-2.80 | 2.7-11 | 41-65 |
6.00 | 1.50-2.80 | 3.4-9 | 48-64 |
8.00 | 2.00-3.15 | 4.5-9.1 | 53-63 |
10.00 | 2.00-3.15 | 3.7-8.0 | 59-69 |
14.00 | 2.00-4.00 | 3.0-9.6 | 61-76 |
19.00 | 2.80-4.00 | 4.2-7.9 | 68-76 |
22.00 | 2.50-4.00 | 3.0-7.1 | 72-80 |
25.00 | 4.00-5.00 | 6.4-9.3 | 70-74 |
26.00 | 4.00-5.00 | 6.1-9.2 | 70-75 |
28.00 | 3.00-4.00 | 3.5-5.8 | 77-82 |
30.00 | 3.00-4.00 | 3.3-5.6 | 78-83 |
32.00 | 4.00 | 5.3 | 79 |
35.00 | 4.00-5.00 | 4.8-7.3 | 77-81 |
40.00 | 4.00 | 4.00 | 84 |

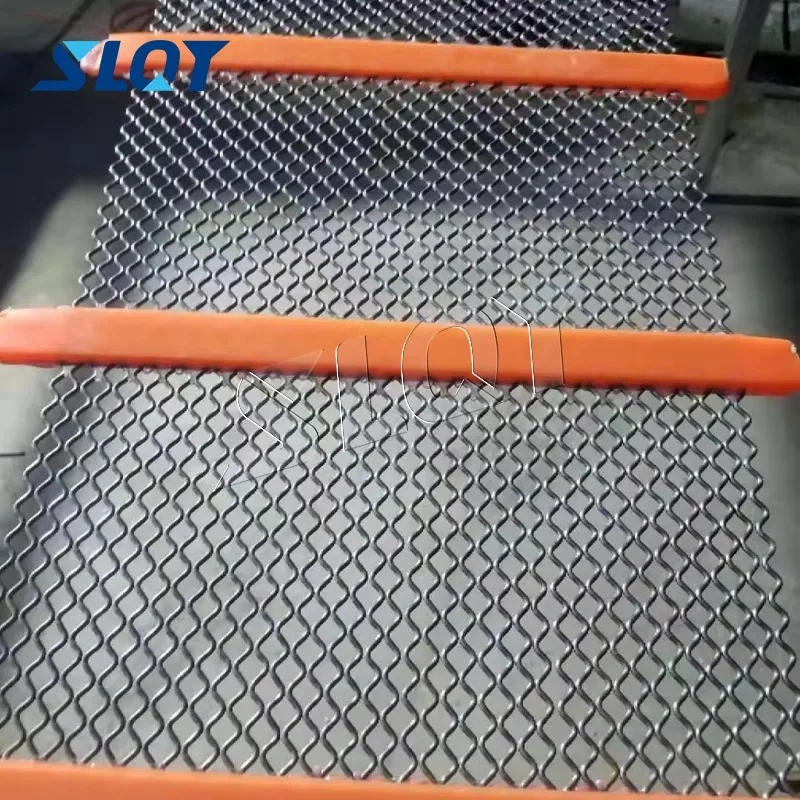

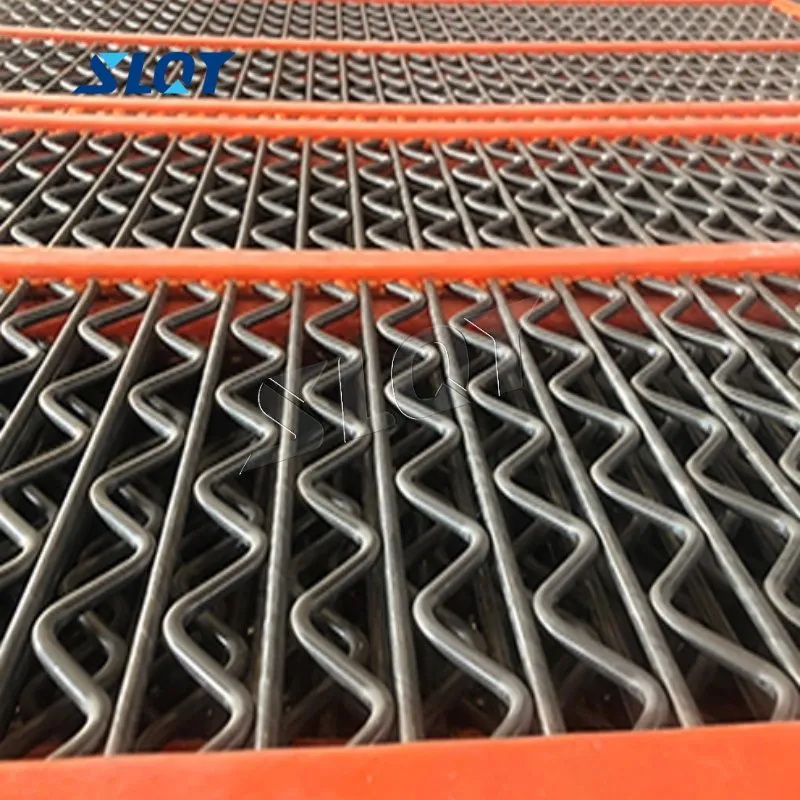

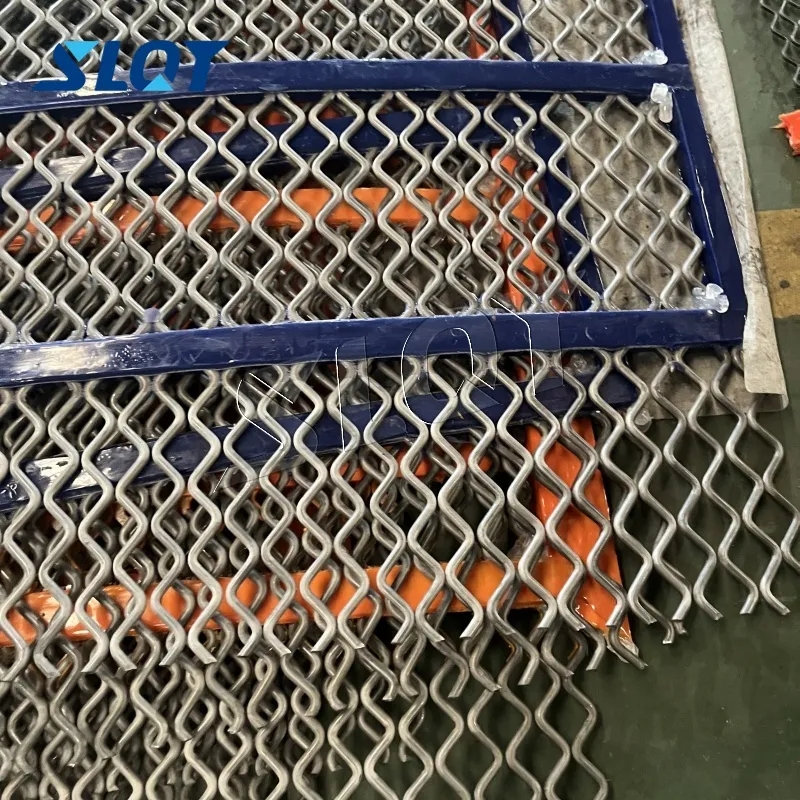

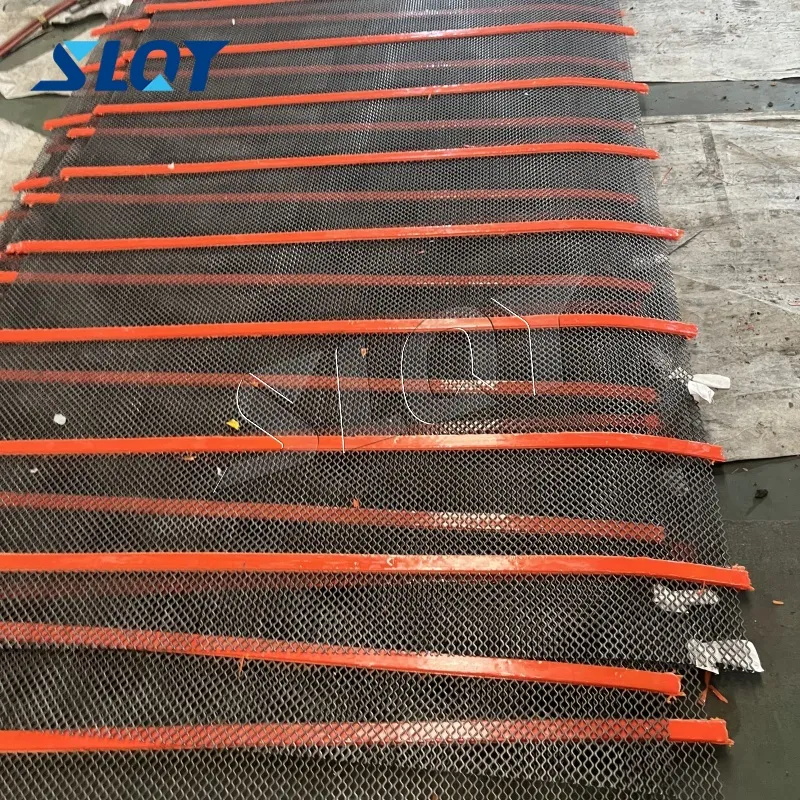

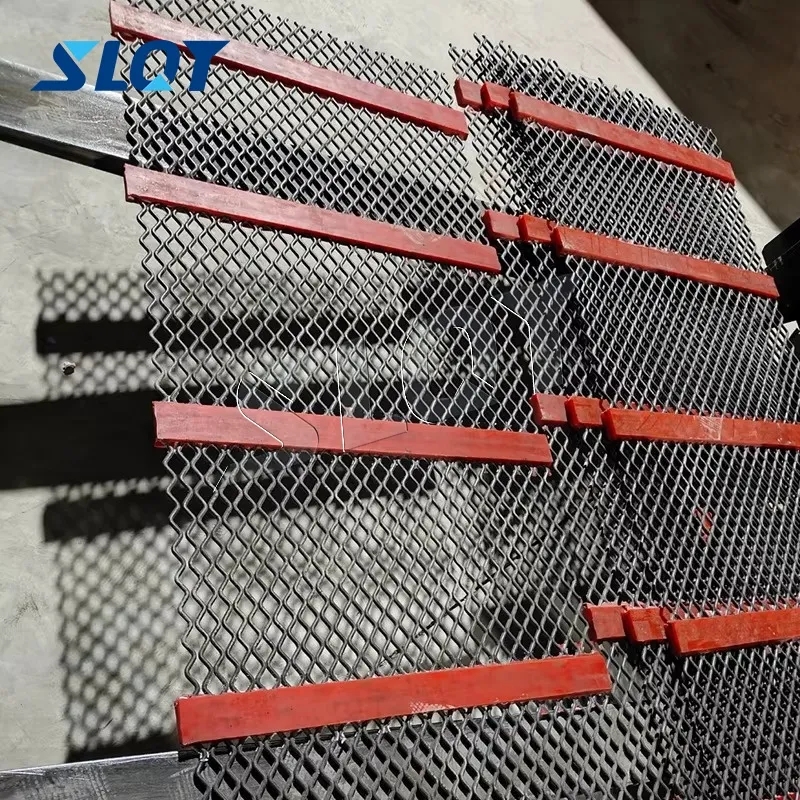

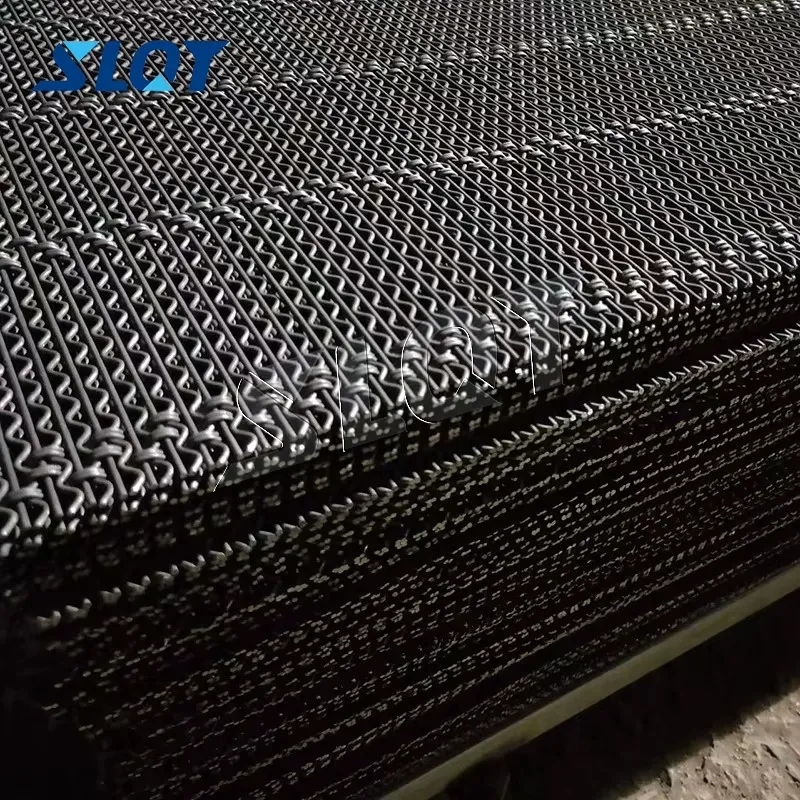

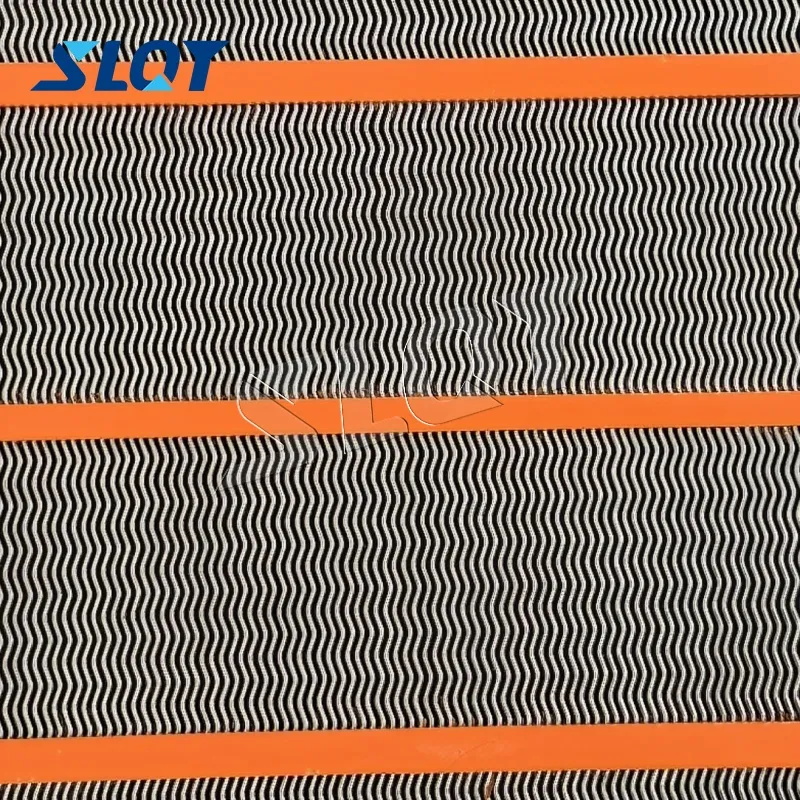

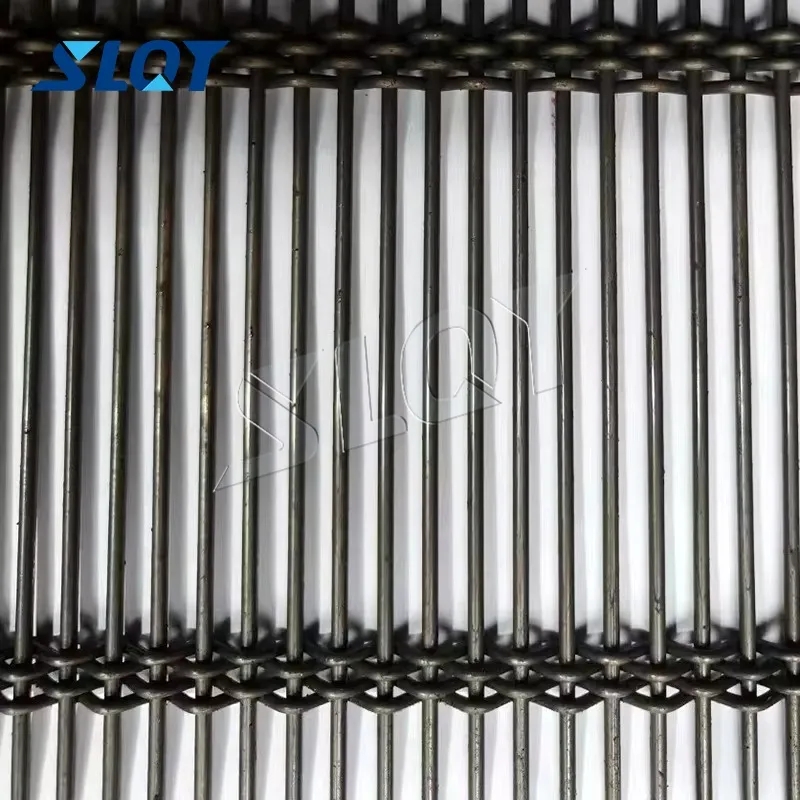

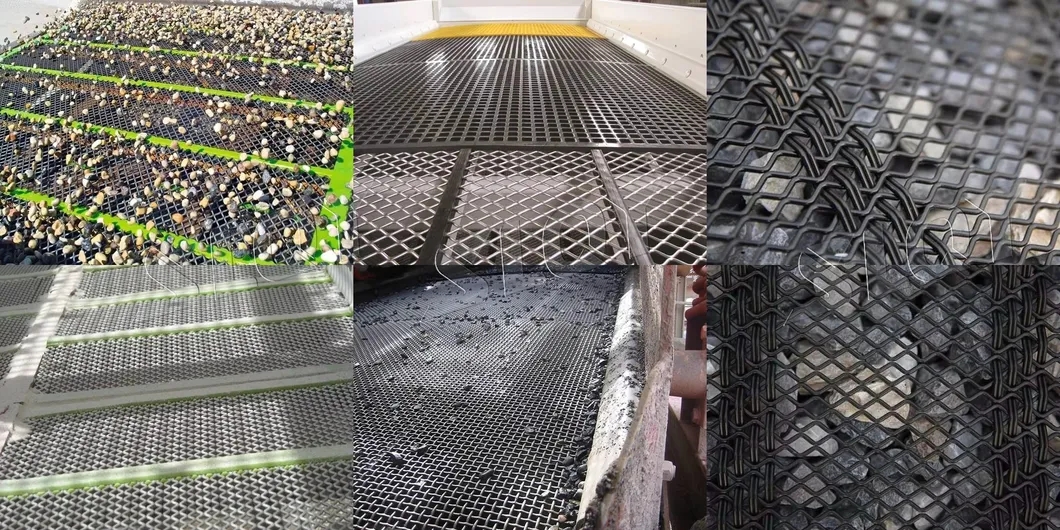

Self cleaning screen type

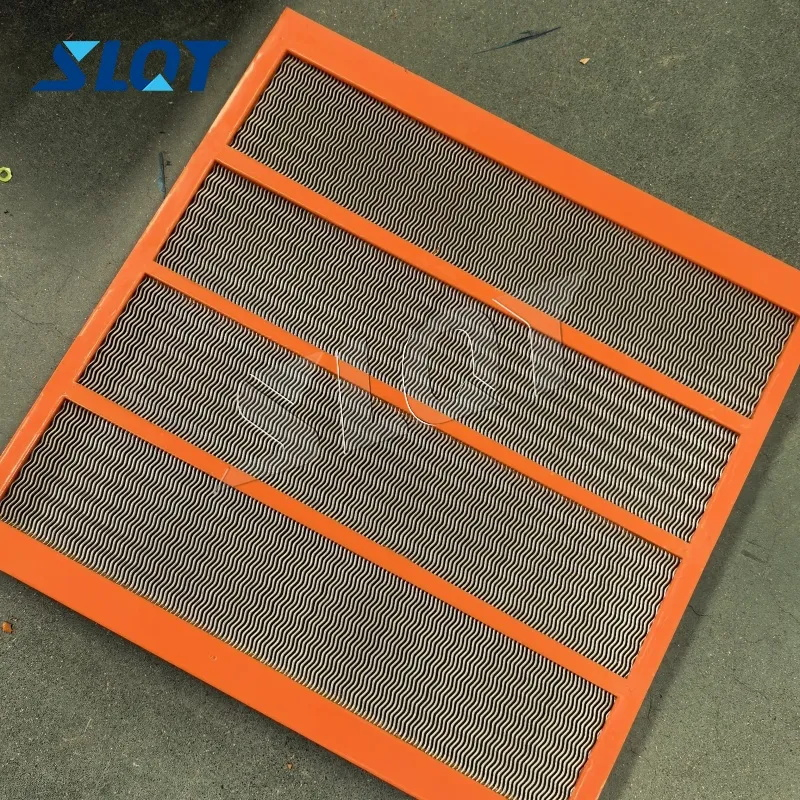

Self-cleaning screens type Q Self-cleaning screens type D
Self-cleaning screens type W Self-cleaning screens type L

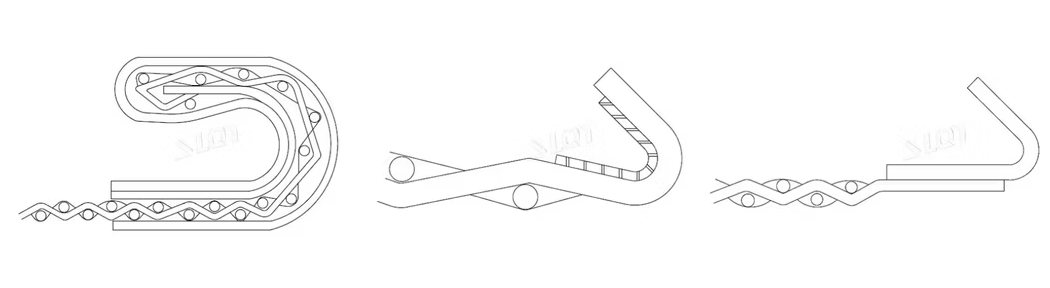

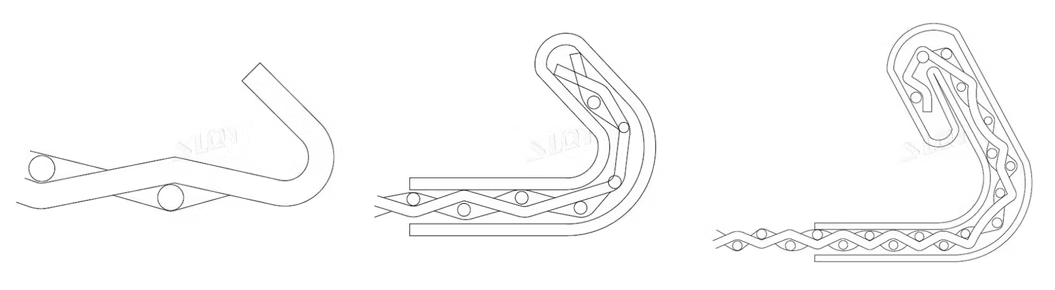

Edge Types
Plain hooked edge Reinforced shroud edge Double folded reinforced shroud edge
End tension reinforced shroud edge Inside reinforced formed edge Welded bent plate edge
Self cleaning screens effective screening all kind size of the most wet, moist material using in mining, quarry, aggregate processing industries.
