Availability: | |||||||||
---|---|---|---|---|---|---|---|---|---|
Titanium rod filter element is made of industrial high purity titanium powder (99.4%) as raw material, through screening, cold isostatic pressing molding, high temperature, and high vacuum sintering. The titanium rod filter element with its high-tech material composition and special molding process, has excellent performance. Uniform structure, narrow aperture distribution, high separation efficiency. | |||||||||
The Titanium Rod Sintered Powder Filter Cartridge uses a kind of industrial high-purity titanium powder as raw material, after screening and cold isostatic pressing,and vacuum sintered porous titanium filter element.It is widely used in solid-liquid separation in food and beverage, pharmaceutical, chemical and other industries.The filtering precision can reach 0.22um~100um. Titanium rod filter is characterized by small size, light weight, convenient use, large filtration area, low clogging rate, fast filtration speed, no pollution, stable thermal stability and good chemical stability, so it is widely used in fine filtration and sterilization craft.
Cartridge structure | Filter media | Titanium powder |
Seal ring material | Silicone,Viton,EPDM,PTFE | |
Working situation | Max.working temperature | ≤200℃ |
Max. working pressure drop | 300Mpa/23℃ | |
Rating | 0.45, 0.5, 1, 2, 5, 10, 20, 50, 75, 100 micron | |
Length | 125, 250, 350, 500, 750, 1000 mm | |
OD | 20, 30, 50, 60, 70, 90mm | |

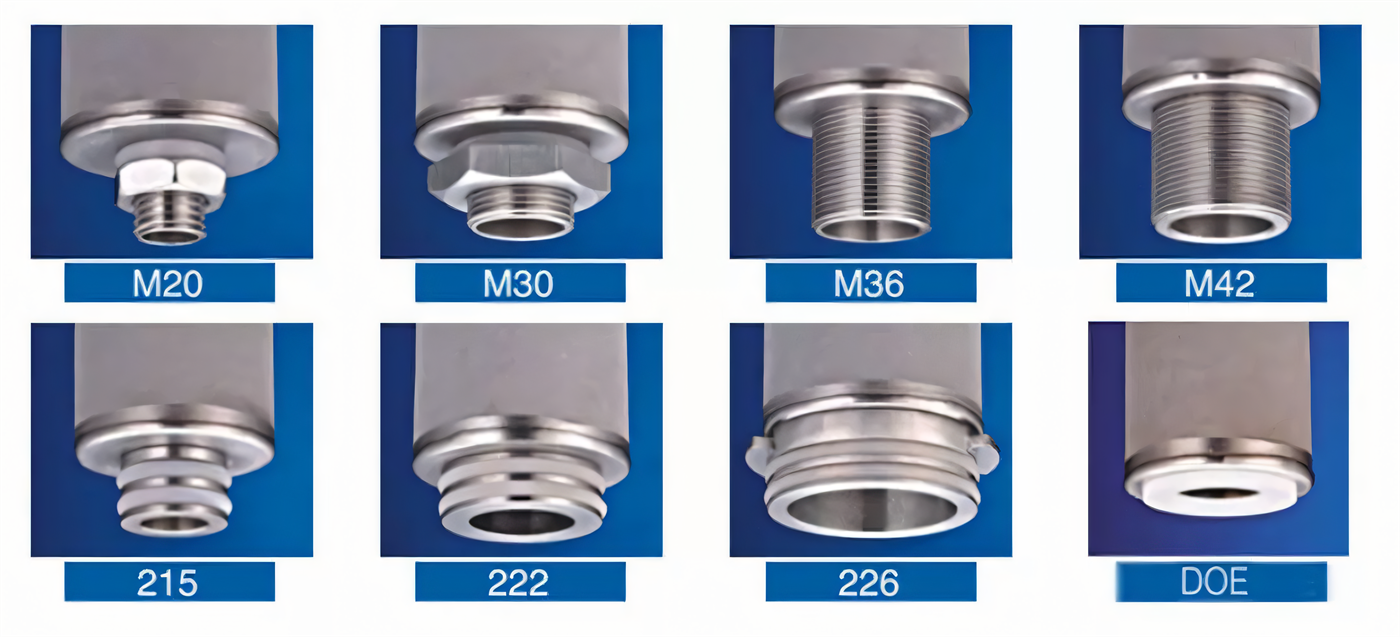

Connector | M20 M30 M32 222 226 |
High porosity, low filtration resistance, high penetration efficiency.
Good chemical stability, acid and alkali corrosion resistance, oxidation resistance.
No particle shedding, no secondary pollution of the stock solution, in line with the requirements of food. hygiene and pharmaceutical GMP.
High temperature resistance, generally can be used below 280 degrees.
