TWK Series PA/PE Micropore Filter

Availability:

PA/PE Micropore filter Micropore filter Self-cleaning Filter Precision Microporous filter

Product Description

TWK Series PA/PE Micropore filter is a new type of precision filtration equipment, the filter is mainly made of polymer materials sintered polyethylene PA/PE Micropore filter as a filter medium, it can filter liquid, gas particles and bacteria above 0.1μm, high filtration accuracy, fast transition speed, renewable filter element, long service life.These PE/PA microporous filters are an essential part for fine chemical, pharmaceutical and food industries requiring batch production with high demands of dry filter cakes.

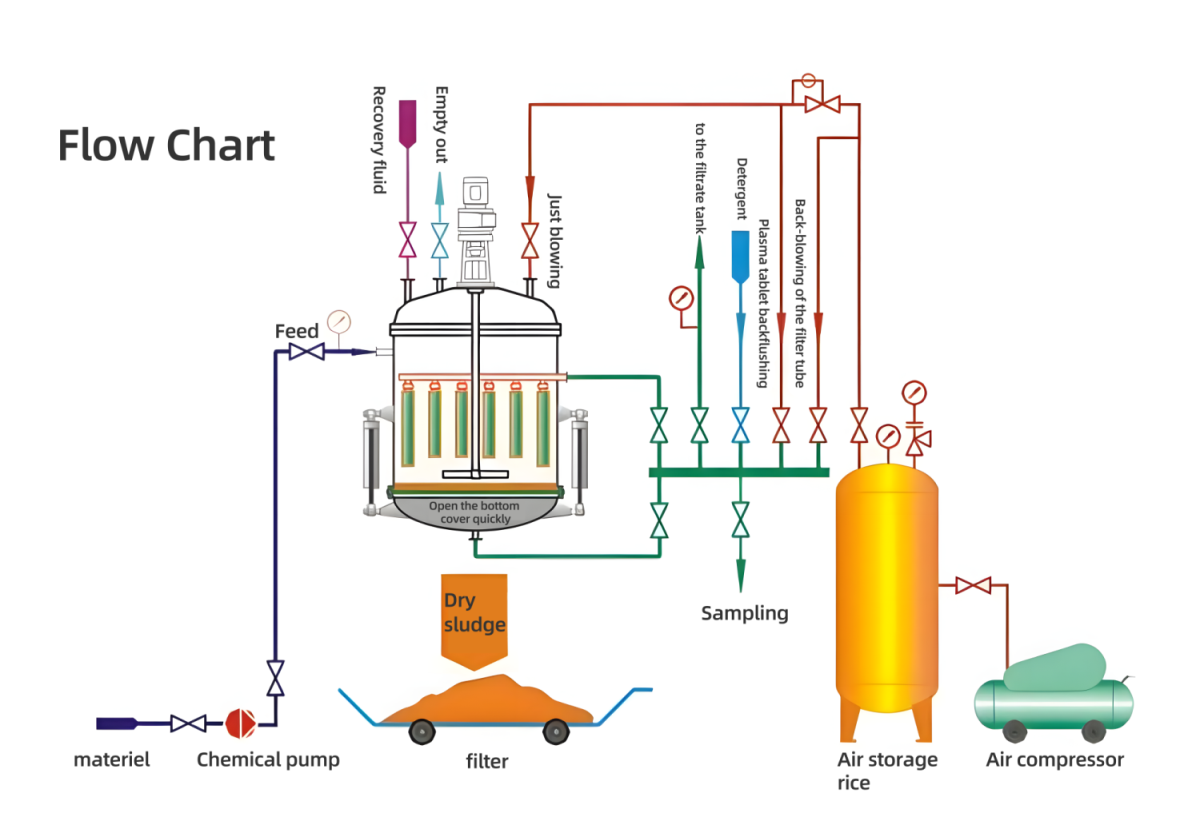

Work Principle

The liquid passes through the screen from outside to inside, the impurities are intercepted outside, and the filter cake layer accumulates gradually outside the screen. Before the filter cake layer is formed, the discharged filtrate is returned to the inlet and sent to the filter for circulating filtration until the filter cake layer is formed (can meet the filtration requirements), providing a signal to control the clear liquid no longer circulating, and the clean clear liquid is discharged from the outlet to the next process for normal filtration.

After a period of normal filtration, when the filter cake layer reaches a certain thickness, close the feed port, drain the residual liquid in the filter, open the back mouthpiece (compressed air, nitrogen or saturated steam) for backblowing after draining, so that the filter cake falls off. After a certain period of backblowing, stop the backblowing, provide a signal to open the filter slag discharge port for slag discharge, and close the slag discharge port after the slag discharge is finished. Return to the initial state before filtering and prepare for the next round of filtering.

Product Feature

The PE/PA microporous filter features a specially designed structure that helps achieve precision filtration of liquids containing high content of solids, without residue;
PE or PA polymer microporous tube, titanium/ceramic filter, can capture particles with a particle size greater than 0.3μm;
The filtration process is carried out in an airtight enclosure, ensuring safe production while preventing any odors from escaping;
Pneumatic / hydraulic system is adopted for quick opening and closing, enabling the cleaning and maintenance easier and faster;
The corrosion-resistant lining makes the PE/PA microporous filter suitable for handling acidic materials;

Product Specification

Model	Cartridge QTY	Cartridge	Flow ( t/h )	Filtering Area (㎡)	Housing Volume(L)	Inlet/Outl et(DN)	Discharging Port (DN)	Housing Diameter(mm)	Total Height(mm)	Housing Height (mm)	Discharge Port Height(mm)	Foundation Bolt Center Distance(mm)
TWK-1	20	L500	1	1	40	20	100	300	1400	1000	400	φ1000
TWK-2	26	L750	2	2	76	25	100	350	1650	1250	400	φ1000
TWK-3	44	L500	2	2	90	25	150	450	11450	1050	400	φ1000
TWK-4	44	L1000	4	4	175	32	150	450	2100	1600	500	φ1000
TWK-5	54	L1000	5	5	200	40	150	500	2150	1650	500	φ1200
TWK-14	140	L1000	14	14	580	50	250	800	2300	1700	600	φ1400
TWK-18	180	L1000	18	18	760	80	300	900	2450	1750	700	φ1500
TWK-22	220	L1000	22	22	900	80	300	1000	2500	1800	700	1300*1440
TWK-50	320	L1500	48	48	1800	100	350	1200	3200	2400	800	1500*1640
TWK-60	430	L1500	65	65	2600	150	350	1400	3300	2500	800	1700*1840
TWK-80	560	L1500	84	84	3400	150	400	1600	3380	2580	800	1900*2040
TWK-100	700	L1500	105	105	4500	150	450	1800	3450	2650	800	2000*2140
TWK-130	870	L1500	131	131	6000	200	500	2000	3600	2800	800	2100*2240

Product Application

Automatic-Self-Cleaning-PA-PE-Micropore-Precision-Stainless-Steel-Filter_看图王

Application:

Precision filtration of powdered activated carbon in pharmaceutical and food production;
Precision filtration of Chinese herbal medicines;
Precision filtration of oral liquid, injection liquid, nourishing liquid, medicinal wine, etc.;
Precision filtration of syrup for pharmaceutical and food;
Precision filtration of soy sauce, vinegar, etc.;
Precision filtration of fruit juice (apple juice, strawberry juice, hawthorn juice, etc.);
Filtration of iron sludge in pharmaceutical and chemical production;
Filtration of catalysts and other ultrafine particles in pharmaceutical and fine chemical production.
