Water Well Drive Point

Availability:



Sand point de-watering spears screen/ steel wedge wire self-jetting well points ,the serations on the jet head render penetration, even through hard grounds easily. Specially designed slots of stainless steel screen,allows maximum water flow with minimum pressure drop and prevents passage of even fine material. Ranges of sand point de-watering spears screen system.This kind well screen for water well drilling, geotechnical drilling, environmental drilling, mineral exploration drilling, geothermal drilling, construction drilling,water utility and gas utility leak detection work along with a wide range of other diverse applications.
Inquire

Wedge tube filter wedge wire tube filter johnson filter tube wedge wire johnson well screen

Product Description

Water Well Drive Point

A driven point well – sometimes called a sand point – is a small diameter well made by connecting lengths of 1-1/4” or 2” diameter steel pipe together with threaded couplings. Threaded to the bottom of the string of pipe is a drive-point well screen. The screen is usually 2 to 3 feet long with a hardened steel tip or drive-point at the bottom.

The purpose of the screen is to allow groundwater to flow into the well but keep the surrounding sand out. Water can then be pumped up through the pipe to the surface. The hardened steel drive-point tip allows the well to be more easily driven into the ground. The pipe and drive-point resemble a long spear.

Product Specifications

60 wire models - 304 and 316 Stainless Steel

Size (in.)	OD (in.)	ID (in.)	Screen Weight (lbs./ft.)	Max Depth (ft.)	Tensile Strength (lbs.)	Column Strength (lbs.)	Open Area - sq in./ft .of Screen			Collapse Strength - PSI4
							Screen Slot Size - (thousandths of an in.)			Screen Slot Size - (thousandths of an in.)
							6	10	12	6	10	12
1.25	1.7	1.0	2.0	1,000	5,500	5,800	5.8	9.1	10.6	6155	5804	5642
2P	2.4	1.7	2.7	1,000	7,200	8,700	8.2	12.8	15.0	2349	2215	2153
2P Sand Point	2.6	2.0	2.5	1,000	4,900	4,200	8.9	14.0	16.3	1825	1721	1673
3P All Drive	3.7	3.0	4.4	1,000	12,700	13,400	12.6	19.7	23.0	638	620	603
4P All Drive	4.7	4.0	5.6	600	16,300	21,400	16.0	25.2	29.4	318	300	291
4P - Double Drive	4.8	4.0	7.0	1,000	16,300	21,400	11.3	18.1	21.3	835	801	785

Types

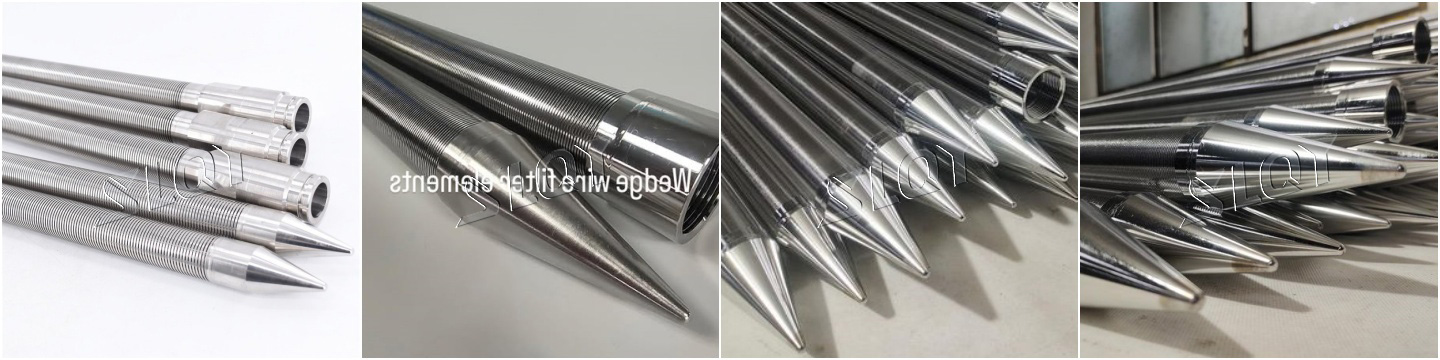

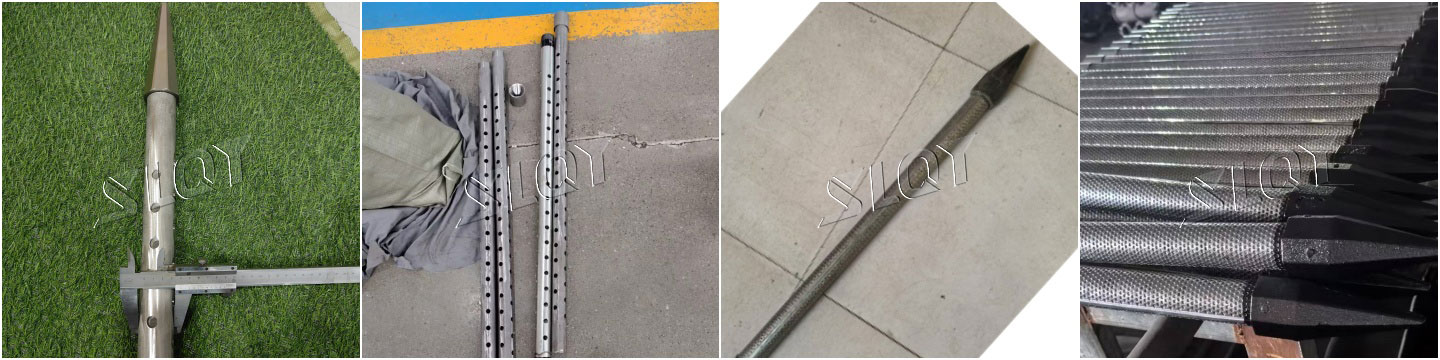

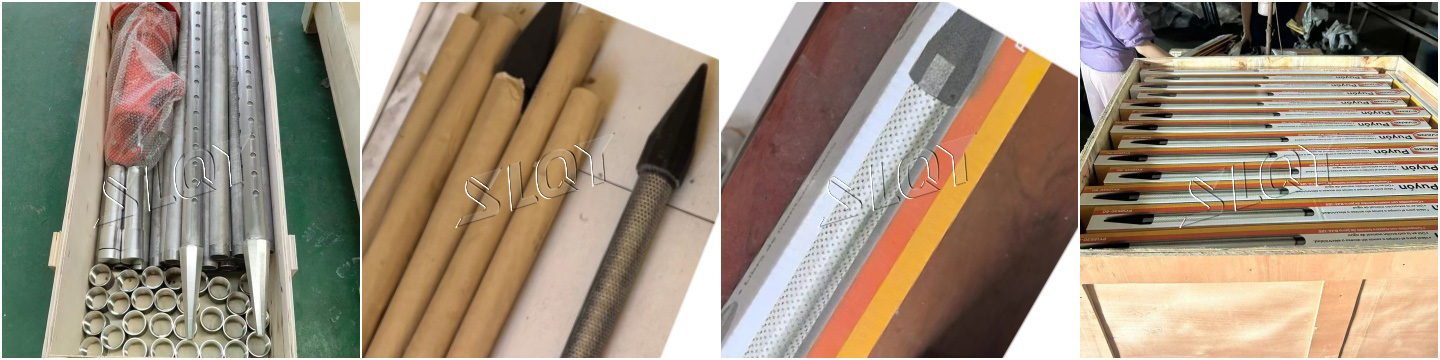

Products & QC Photos

Product Advantages

Installed properly using a high quality drive-point, it can provide an adequate supply of safe drinking water, especially for cottages and many residences. However, because of installation limitations, driven point wells are usually only found in areas having permeable sandy soils and a high water table.

Flush Well Point Features:

Same as drive well points plus:
Designed to pass through well casing &drive shoe into water bearing sand & gravel.
Pipe coupling is designed to catch in a closed-pattern
Beveled edges on point forms a positive grip on jacket, similar to single piece construction.
Stainless steel jacket & gauze

Combination Well Point Features:

Can be used as a regular well point or as an open end screen.
Stainless steel jacket & gauze
