Wedge Wire Filter Nozzle

Availability:



Wedge wire filter nozzles are made of robust Vee wires and support rods, and continuous welding technology ensures a durable structure. It is used for liquid separation or medium retention (resin, sand, etc.) where the liquid or gas can flow through the nozzle while the medium is retained in the container by a water nozzle.
Inquire

Brand:
SLT

Filter Nozzel Wege Wire Filter Nozzel stainless steel nozzle screen nozzle

Product Description

Wedge wire filter nozzle is composed of wedge wires that are welded with support rods. It is a new generation of water treatment equipment that helps users solve the worries of the original plastic filter nozzle,with the characteristics of safety, reliability, low cost, long service life, etc., and has been widely recognized and applied in the filtration industry.

The material for wedge wire filter nozzles: 304, 304L,316, 316L, and other alloys according to the application.

Type of wedge wire nozzle : Single wedge wire nozzle , Double wedge wire nozzle.

Product Specifications

Type 1: Specification of Single Head Wedge Wire Filter Nozzle
Item	Model	Slots (mm)	Outline Dimension (mm)				Filtration Area (mm²), slot 0.2 mm
Item	Model	Slots (mm)	D	H	L	M	Filtration Area (mm²), slot 0.2 mm
1	SLTSN45-1-A	0.2-0.5	45	25	75	M20	280
2	SLTSN45-1-B	0.2-0.5	45	35	85	M20	390
3	SLTSN45-1-C	0.2-0.5	45	45	95	M24	500
4	SLTSN53-2-A	0.2-0.5	53	45	95	M24	450
5	SLTSN53-2-B	0.2-0.5	53	45	95	M32	450
6	SLTSN53-2-C	0.2-0.5	53	55	110	M32	550
7	SLTSN57-3-A	0.2-0.5	57	35	85	M32	520
8	SLTSN57-3-B	0.2-0.5	57	45	94	M32	660
9	SLTSN57-3-C	0.2-0.5	57	55	110	M32	530
10	SLTSN70-4-A	0.2-0.5	70	45	95	M32	530
11	SLTSN70-4-B	0.2-0.5	70	70	120	M32	1000
12	SLTSN82-A	0.2-0.5	82	60	120	G11/M42	/

Type 2: Specification of Double Head Wedge Wire Filter Nozzle
Item	Model	Slots (mm)	Outline Dimension (mm)				Filtration Area (mm²), slot 0.2 mm
Item	Model	Slots (mm)	D	H	L	M	Filtration Area (mm²), slot 0.2 mm
1	SLTDN45-5-A	0.2-0.5	45	35	As requested	M25	330
2	SLTDN45-5-B	0.2-0.5	45	45		M25	400
3	SLTDN53-6-A	0.2-0.5	53	35		M25	400
4	SLTDN53-6-B	0.2-0.5	53	45		M32	680
5	SLTDN57-7-A	0.2-0.5	57	40		M32	530
6	SLTDN57-7-B	0.2-0.5	57	50		M32	700

Type 3: Specification of Long Hand Wedge Wire Filter Nozzle
Item	Model	Slots (mm)	Outline Dimension (mm)				Filtration Area (mm²), slot 0.2 mm
Item	Model	Slots (mm)	D	H	L	M	Filtration Area (mm²), slot 0.2 mm
1	SLTLN45-8-A	0.2-0.5	45	35	35	M20	330
2	SLTLN45-8-B	0.2-0.5	45	45	40	M24	400
3	SLTLN53-9-A	0.2-0.5	53	35	45	M24	510
4	SLTLN53-9-B	0.2-0.5	53	45	50	M30	640
5	SLTLN57-10-A	0.2-0.5	57	40	45	M30	630
6	SLTLN57-10-B	0.2-0.5	57	50	50	M30	780

Type 4: Specification of Plate Type Flowing Wedge Wire Filter Nozzle
Item	Model	Slots (mm)	Outline Dimension (mm)				Filtration Area (mm²), slot 0.2 mm
Item	Model	Slots (mm)	D	D1	L	L1	Filtration Area (mm²), slot 0.2 mm
1	SLTPN82-11-A	0.25/0.4	82	50	130	50	1300
2	SLTPN82-11-B	0.25/1.0	82	50	130	50	1300

Note: single flow rate and double flow rate Nozzle have the same external structure. A=Double Flow Rate B=Single Flow Rate

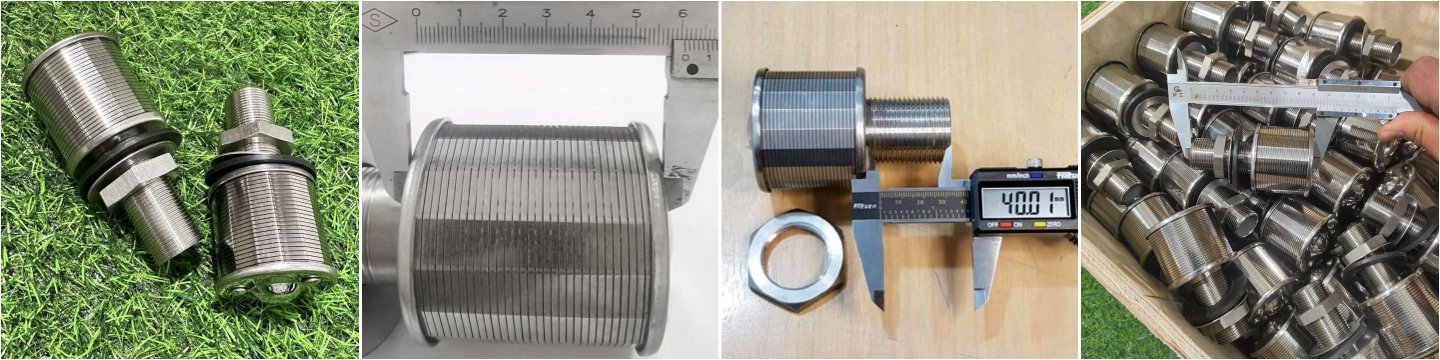

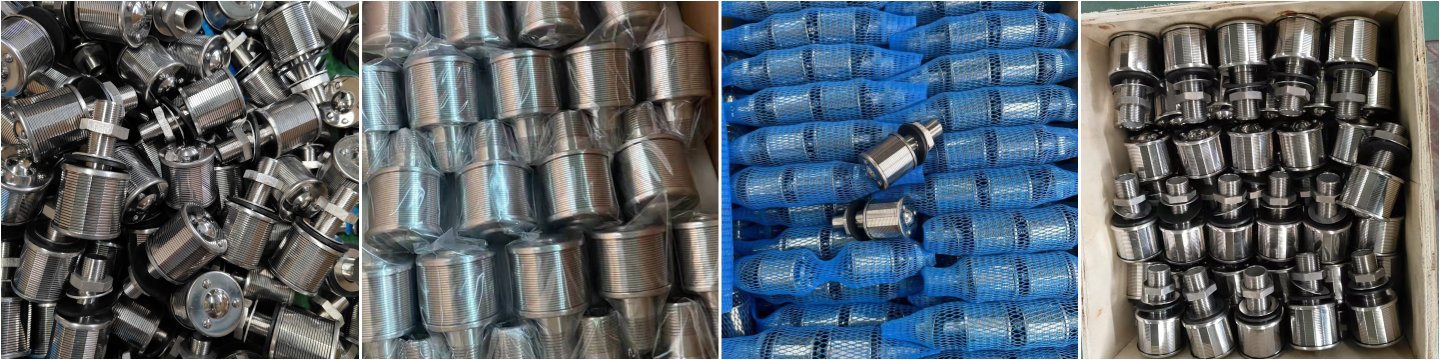

Products & QC Photos

Category

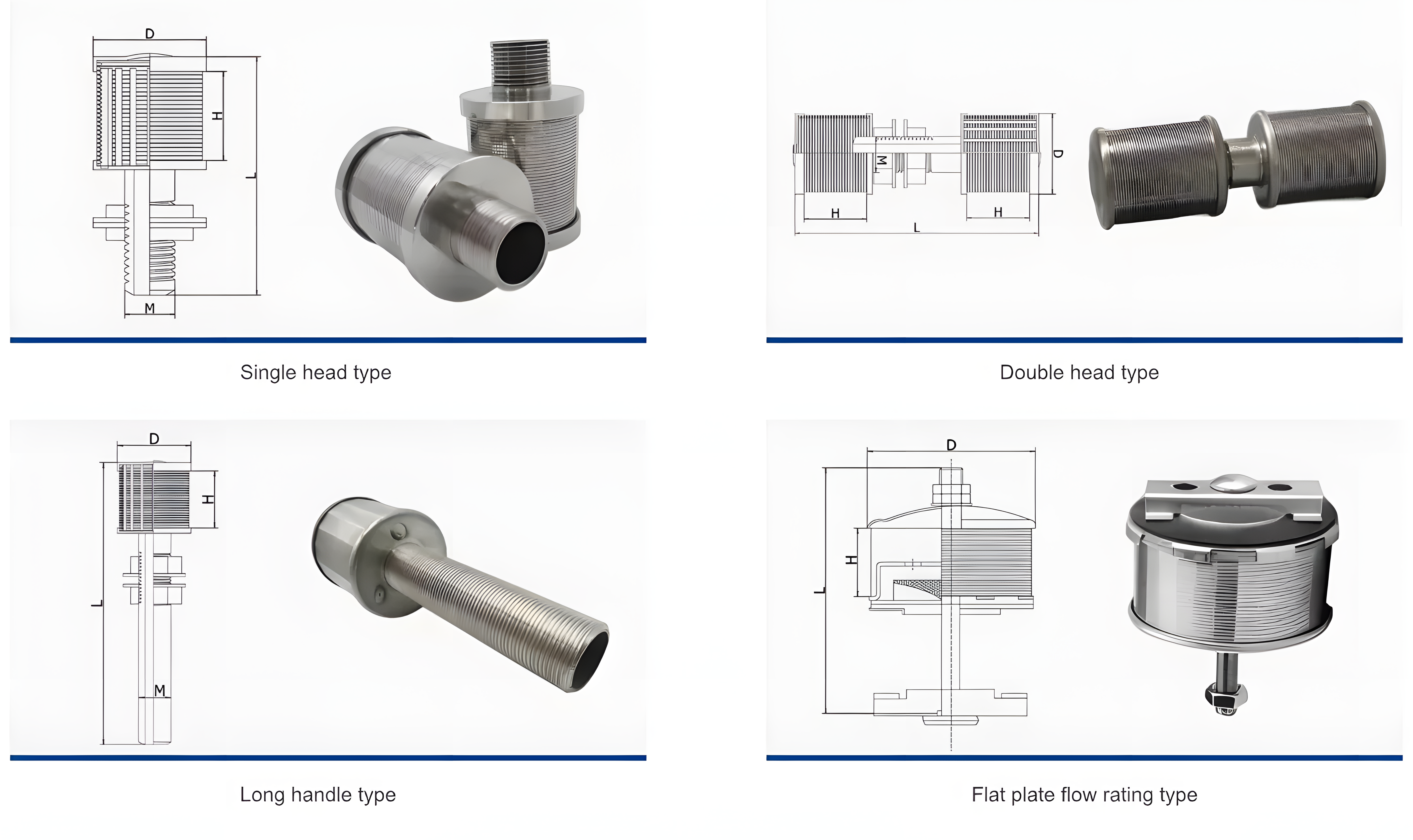

From the appearance, there are mainly four types of metal wedge wire nozzles, single-head wedge wire filter nozzles, double-head wedge wire filter nozzles, single-flow rated and dual-flow rated filter nozzles, and long-handled filter nozzles.

Wedge Wire Filter Nozzle

Product Advantages

Large flow area
High mechanical load capacity
High precision slot width
Pressure and temperature resistance
Anti-corrosion, anti-aging
Safe and reliable
Environmentally friendly
Easy installation
Long service time

Applications

Wedge wire nozzles are widely used in scenarios such as solid-liquid separation and water treatment.

Sand filters and carbon filters
Condensate polisher and ion exchange systems
Removing impurities in filtration systems in the petrochemical industry
Clarifiers
Underdrains for media filtration
Seawater desalination
Water treatment in thermal power plants
