Wedge Wire Lateral Assemblies

Wedge Wire Lateral Assemblies are vessel internals, consist of hub steel pipe with a screen laterals, which can efficiently collect or distribute liquid/gas while preventing the medium from flowing out.

Wedge Wire Lateral Assemblies, also called Under Draining Filtering, water distributor, medium collector.

SLOT can design wedge wire screen laterals assemblies according to Vessel/Filter size, flange size, flow rate, medium sizes.

• Material grade:

• Stainless steel 304/316L/321/904L

• UNS S32205

• UNS S32750

• Hastelloy C276

• Titanium alloy TA2

• Filtration accuracy: Screen slots：20 micron to 3000micron(Tolerance:±5micron),etc.

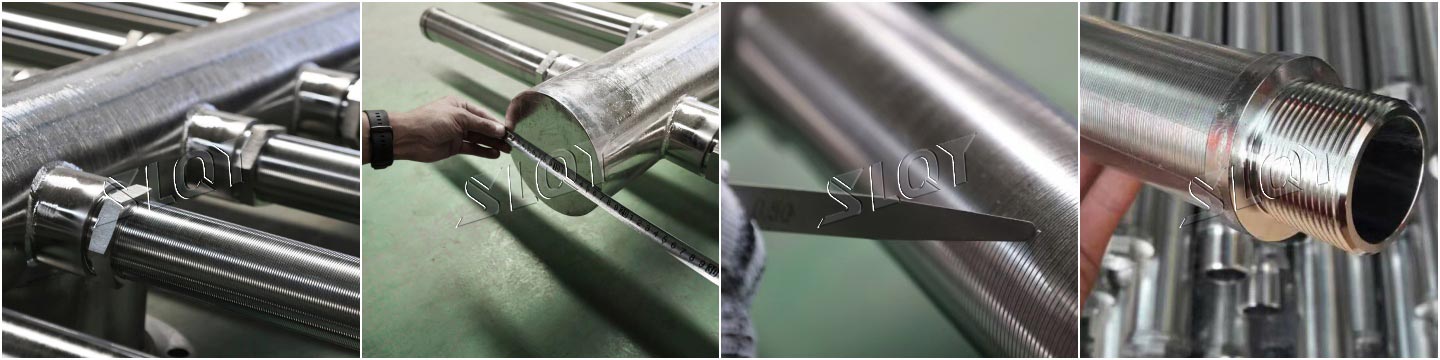

• Screen or Pipe Lateral: Whether Perforated pipe based in screen laterals, or other special design.

• Laterals joint type:

• Standard thread

• Fabricated flanges

• Fully welding types

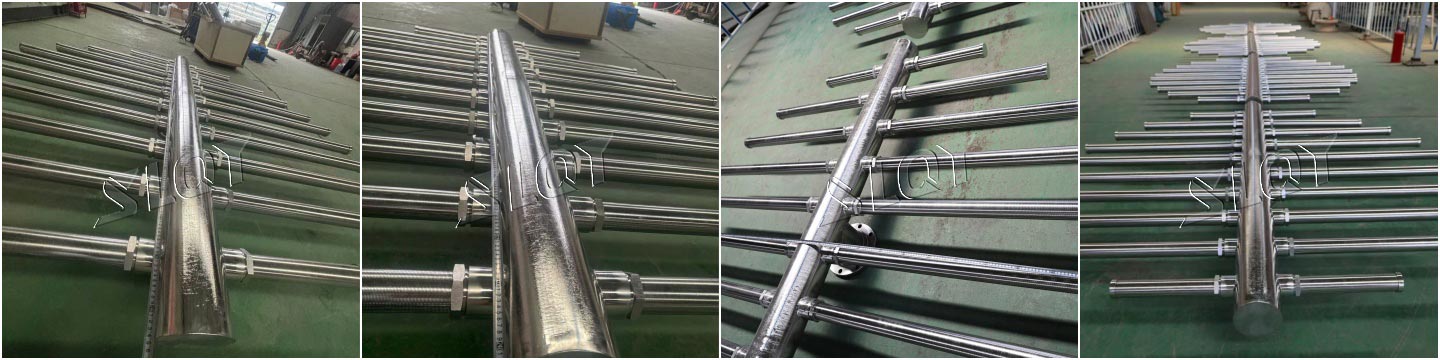

• Lateral Assembly Qty.:

• One row, two rows or three rows.

• Numbers wedge wire screen Lateral

• Assemblies Pattern:

• Ordinary radial

• Fishbone

• T-type

• Surface Treatment: passivation, pickling, stress relieving, polishing, chrome plating

• High open area

• High filtering and screening performance

• Various ending types

• Temperature resistance

• Corrosion and rust resistance

• Non-clogging

• Easy to install and replace.

• Low maintenance cost

• Durable and long service life

• Suit different application
