In the competitive landscape of modern pulp and paper manufacturing, the pressure screen is the final gatekeeper of fiber quality. While many procurement managers view pressure screen baskets as standard consumables, the technical reality is far more complex. The difference between a "standard" basket and a high-precision engineered component often comes down to a mere 0.01mm in slot tolerance—a dimension invisible to the eye but critical to the mill's bottom line.
1. The Hydrodynamics of Slot Precision

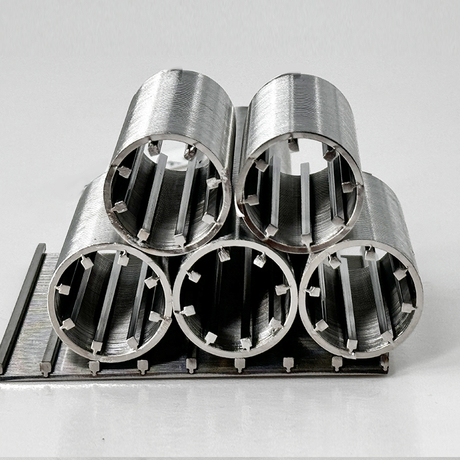

The primary function of a wedge wire screen basket is to separate shives and contaminants from acceptable fibers under intense hydraulic pulses. If slot tolerances are inconsistent (±0.05mm or greater), the mill faces two major technical risks:
Significant Fiber Loss: Oversized slots allow valuable long fibers to bypass the system and enter the reject stream, increasing raw material waste.
Rapid Matting and Plugging: Undersized slots create localized high-pressure zones, leading to rapid fiber accumulation that forces unplanned shutdowns.
By maintaining a strict ±0.01mm tolerance (German Engineering Standard), we ensure a uniform velocity profile across the entire screen surface, preserving laminar flow and reducing pump energy overhead.
2. Structural Integrity Under Cyclic Loading
Pressure screen baskets are subjected to high-frequency pressure pulses—often exceeding 50Hz—as the rotor blades pass the surface. This creates a "flexing" effect. In low-quality baskets, the Heat Affected Zone (HAZ) from welding becomes the primary site for crack propagation.
"Failure doesn't usually happen in the wire itself; it happens at the intersection. Our resistance welding technology ensures zero HAZ distortion, maintaining the original metallurgical strength of the SS316L or Duplex steel."
3. Performance Benchmark: Precision vs. Commercial Grade
Investing in precision engineering delivers a measurable Return on Investment (ROI) through reduced energy and increased uptime.
| Technical Parameter | Commercial Standard | Johnson Slot Precision |
|---|---|---|
| Slot Tolerance | ±0.05mm | ±0.01mm to ±0.02mm |
| Screening Efficiency | 85% - 90% | 96% - 99% |
| Service Life | 6 - 9 Months | 14 - 20 Months |
4. Compatibility with Global OEM Systems
Our replacement screen baskets are engineered to be 100% compatible with major brands like Andritz, Kadant, and Valmet. We analyze your specific pulp consistency and rotor speed to customize the wire profile angle, often outperforming the original equipment manufacturer's specs.
