How Wedge Wire Screens Are Used in Wastewater Treatment
In modern wastewater treatment facilities, efficient solid-liquid separation is the foundation of the entire purification process. Traditional wire mesh and perforated plates often fail under heavy loads due to blinding and clogging. This is where the wedge wire screen (also known as V-wire screen) becomes an indispensable component.
Known for its structural integrity and self-cleaning properties, the wedge wire screen is widely utilized across multiple stages of water treatment. Here is a detailed look at how this advanced filtration technology is applied in wastewater management.
1. Primary Screening: Intercepting Bulk Solids
The first stage of municipal and industrial wastewater treatment involves removing large debris, plastics, and suspended solids before they can damage downstream pumps and sensitive equipment.
- Static Sieve Bends (DSM Screens): Curved wedge wire screens are often installed in a static, sloped position. As wastewater flows down the curved surface, the sharp leading edge of the V-wire slices the water flow, directing liquids through the slots while pushing solid waste down the screen surface to a collection area.
- Rotary Drum Screens: For high-volume municipal plants, internally or externally fed rotary wedge wire screens provide continuous, automated solid separation. The continuous slot design ensures maximum flow rates without blinding.
2. Sludge Thickening and Dewatering
Handling sludge is one of the most expensive aspects of wastewater treatment. Reducing the water content in sludge significantly lowers disposal and transportation costs.
Wedge wire screen panels and centrifuge baskets are critical in this phase. Integrated into screw presses and dewatering centrifuges, these screens withstand extreme mechanical pressure. The V-shaped profile of the wire ensures that any particle passing through the narrowest part of the slot will easily pass through the rest of the screen, completely eliminating the risk of clogging during heavy sludge processing.
3. Tertiary Filtration & Membrane Protection
In advanced treatment plants that utilize MBR (Membrane Bioreactor) systems or reverse osmosis, wedge wire screens are deployed as a vital pre-filtration defense. By utilizing micro-slot screens with tolerances as tight as 0.02mm, facilities can effectively filter out fine grit and biological flocs, extending the lifespan of expensive membranes.
Why is Wedge Wire Superior for Water Treatment?
Compared to conventional woven mesh, wedge wire offers unmatched engineering advantages:
- Non-Clogging Design: The V-shaped surface profile creates a widening gap, meaning particles can only have two-point contact. If it passes the surface, it will not get stuck.

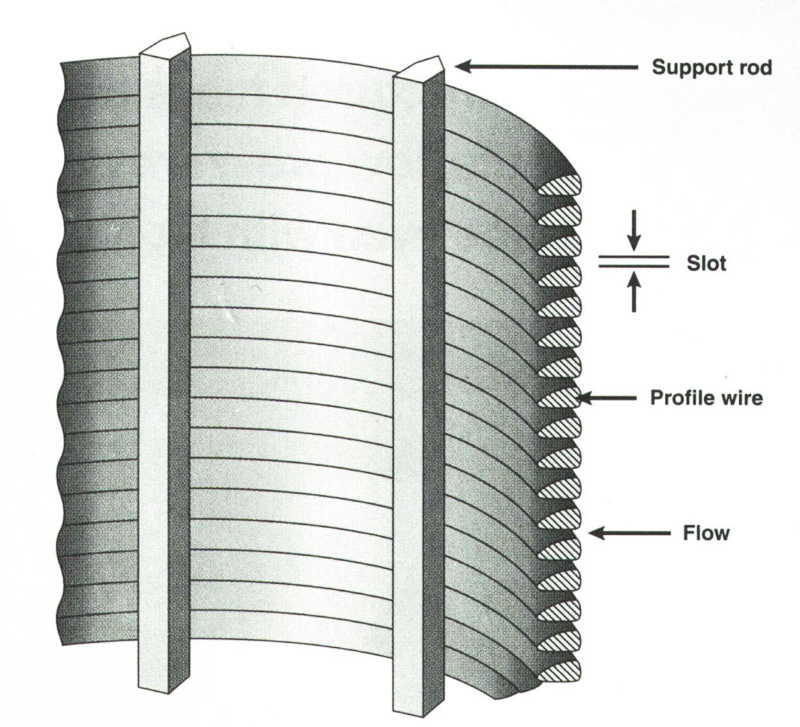

- High Mechanical Strength: Each intersection of the surface wire and support rod is fusion-welded, allowing the screen to handle high-pressure backwashing and heavy sludge loads.
- Corrosion Resistance: Wastewater is highly corrosive. Manufacturing these screens from premium Stainless Steel 304, 316L, or Duplex alloys ensures long-term durability in aggressive chemical environments.
Direct Factory Solutions for Wastewater Facilities
Reliable wastewater treatment requires precision manufacturing. At Johnsonslot®, we don't just supply equipment; we are the direct wedge wire screen manufacturer.
Operating our own advanced CNC fusion-welding lines, we produce custom flat panels, sieve bends, and rotary cylinders tailored to the specific flow rates and hydraulic conditions of your facility. By controlling the manufacturing process in-house, we guarantee strict slot tolerances, premium material traceability, and direct factory pricing.
