Wedge Wire Screen Introduction

Hello everyone, it is a great honor to introduce today an efficient product that plays a key role in the field of industrial filtration and screening—the “Wedge Wire Screen”.

This is a meticulously designed, high-performance filtration and screening component, representing the advanced achievements of modern industrial materials technology. No matter which industry you are in, whenever separation, filtration, or dewatering is involved, it has the potential to become your good assistant in enhancing process efficiency and reducing operational costs.

I. Product Description: What is a Wedge Wire Screen?

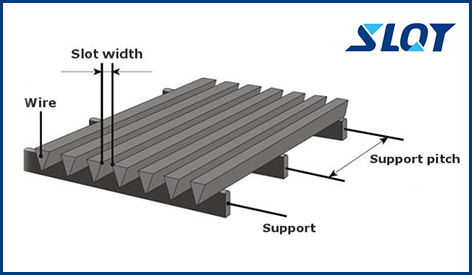

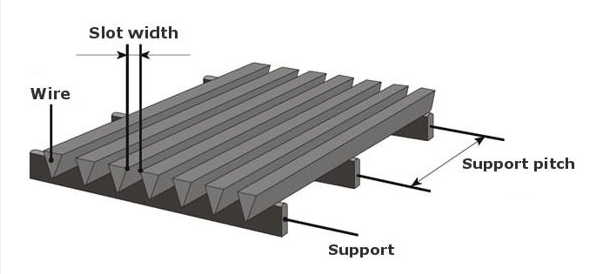

As the name suggests, the core of the wedge wire screen lies in the "Wedge Wire." It is not made by traditional weaving processes but employs unique welding technology to firmly weld metal wires with a "V" shaped cross-section (wedge wires) onto a series of parallel support rods at precise intervals.

This structure forms a smooth surface with uniform, continuous screening gaps. The gaps (i.e., slot size/aperture) remain constant from the inlet to the outlet, ensuring highly consistent screening accuracy. The entire screen structure is robust, typically manufactured from high-quality metal materials, combining strength with durability.

II. Working Principle: How Does It Work?

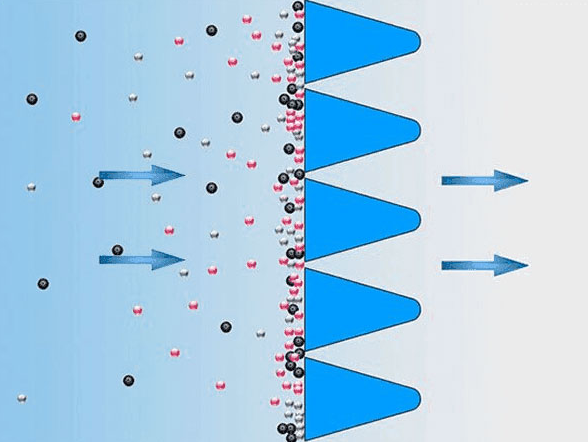

The working principle of the wedge wire screen is intuitive and highly efficient, primarily achieving screening and filtration through its physical structure:

1. **Precision Screening**: When the material to be processed (liquid, slurry, or granules) flows over the screen surface, components smaller  than the slot width (such as fine particles, liquid) will pass smoothly through the gaps, becoming the "undersize."

2. **Effective Retention**: Solid particles and impurities larger than the slot width are precisely retained on the screen surface, becoming the "oversize" or being collected, thereby achieving efficient solid-liquid separation, particle classification, or media purification.

3. **Self-Cleaning characteristic**: The special structure of its V-shaped wires plays a key role. During operation, the fluid or material flows along the inclined surface of the wedge wire. This design creates a certain "scraping" or "channeling" effect, making it difficult for particles to become lodged in the gaps. Simultaneously, the V-shape means the slot entrance is narrower than the internal width, reducing the possibility of blockage. Even if partial blockage occurs, it is more easily removed through methods like backwashing.

Simply put, it acts like an extremely sturdy and non-wearing "filter spoon," only allowing the substances that meet the requirements to pass through, thus achieving precise separation.

III. Core Product Features & Advantages: Why Choose It?

Compared to traditional woven screens, perforated plates, and other filtration products, the wedge wire screen boasts incomparable outstanding advantages:

1. **High Strength & Exceptional Durability**: The fully welded structure gives it extremely high overall mechanical strength, enabling it to withstand significant pressure and impact loads, resistance to deformation and damage, and a long service life.

2.**Precise Slot Control & High Stability**: Screen slots are precisely controlled by molds, ensuring uniformity and consistency, which guarantees highly reliable and stable screening accuracy and good product quality controllability.

3.**Excellent Self-Cleaning Ability & Anti-Blinding Properties**: The unique guidance design of the V-shaped wires effectively reduces material blinding. It is particularly suitable for handling viscous, wet, or easily blinding materials, resulting in longer maintenance intervals and reduced downtime.

4.**High Open Area & High Flow Capacity**: The compact welded structure offers a high percentage of effective filtration area (open area). This means that for the same area, it allows for greater flow rates, faster filtration speed, and higher work efficiency.

5.**Outstanding Corrosion & Temperature Resistance**: Different materials can be selected based on working conditions (see below), effortlessly handling harsh environments like acid-base corrosion, high temperature, and high pressure, leading to a very wide application range.

6.**Easy Cleaning & Maintenance**: The smooth surface and simple structure make clogged material easy to remove. It supports high-pressure water washing, chemical cleaning, or ultrasonic cleaning, resulting in low maintenance costs.

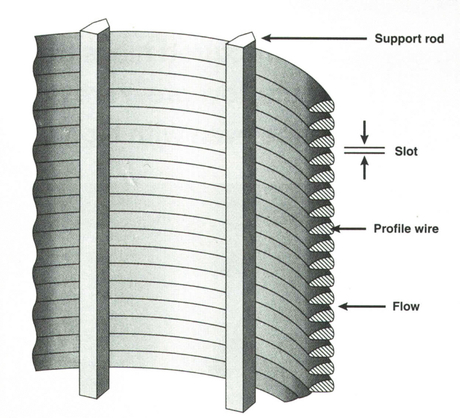

7.**High Customizability**: Slot size, screen thickness, overall dimensions, and shape (can be made into flat panels, filter cylinders, filter baskets, etc.) can all be flexibly customized according to your specific needs, offering nice adaptability.

IV. Diverse Material Choices: Tackling Various Challenges

To meet the special needs of different industries, wedge wire screens offer a variety of material choices:

1.**Stainless Steel**: The most common choice, such as 304, 316, 316L, offers good corrosion resistance and comprehensive mechanical properties, suitable for most applications like water treatment, food, and chemical industries.

2.**Duplex Stainless Steel**: Such as **2205, 2507**, combines high strength with excellent resistance to chloride stress corrosion cracking, suitable for harsh environments like seawater, chemical, and oil platforms.

3.**Hastelloy**: Such as **C-276, B-2**, as a leader among nickel-based alloys, can resist extremely strong acids and chloride ion corrosion. Used in extreme chemical environments like hydrometallurgy and flue gas desulfurization systems.

4.**Titanium & Titanium Alloys**: Lightweight, with unparalleled corrosion resistance in oxidizing media and chloride environments, making it a top choice for industries like seawater desalination and chemicals.

5.**Carbon Steel**: Cost-effective, sufficient strength, but poor corrosion resistance. Usually requires coating or anti-corrosion treatment, used for screening in non-corrosive or dry environments.

6.**Engineering Plastics/Nylon**: Suitable for the food and pharmaceutical industries where metal ions are strictly restricted, or for applications requiring special electrical insulation or low cost.

You can select the most suitable material based on the characteristics of the medium being processed (pH, chemical composition), operating temperature, pressure, and cost budget.

V. Wide Range of Applications: Where Does It Excel?

The applications of wedge wire screens are found across almost all industrial fields:

1. **Water Treatment Industry**: The core filtering component of filter vessels; used for pre-treatment in seawater desalination, screening, dewatering, and backwash nozzles in waterworks and wastewater treatment plants.

2. **Petrochemical Industry**: Used for catalyst support inside reactors, screening and filtering oil products, separating oil-water mixtures, polymer filtration, etc.

3.**Food & Pharmaceutical Industry**: Used for filtering syrups, chocolate, edible oil, ethanol, fruit juices; clarifying medicinal liquids; screening and grading powder raw materials, meeting hygienic-grade requirements.

4.**Paper Industry**: Installed on paper machines for pulp screening, dewatering, and as ventilation panels in the dryer section.

5.**Mining & Metallurgy**: Used on vibrating screens for classifying, dewatering, and desliming ores, coal, sand, and gravel.

6.**Environmental Protection & Energy**: Used in systems for landfill leachate treatment, biogas desulfurization, particle recovery, etc.

7.**Other Industries**: Such as concrete drainage boards in the construction materials industry, coolant filtration in the machinery industry, etc.

In summary, the wedge wire screen is not just a simple filtering element; it is a highly efficient industrial solution integrating high strength, high precision, long service life, and low maintenance. With its reliability and flexibility, it continuously provides solid assurance for optimizing process flows and enhancing product quality across global industries.

If you are looking for a filtration and screening solution capable of handling complex working conditions and improving production efficiency, the wedge wire screen is undoubtedly your ideal choice. We can provide one-stop customization services, from material recommendation to structural design, based on your specific requirements.
