In the demanding environment of pulp and paper mills, the screening basket is the heart of fiber quality control. While traditional drilled or milled screen plates have been industry staples, the transition toward Precision Wedge Wire (V-Wire) is driven by a necessity for higher consistency, lower energy consumption, and reduced maintenance downtime.
At Johnsonslot, we evaluate screening media not just by initial cost, but by its Total Cost of Ownership (TCO) and hydrodynamic efficiency.
1. The "Two-Point Contact" Mechanic: Eliminating Internal Blinding
The fatal flaw of a drilled aperture is its cylindrical profile. Particles that are near-sized to the hole diameter often become wedged inside the channel, creating "blinding" that requires high-pressure washing or chemical cleaning.

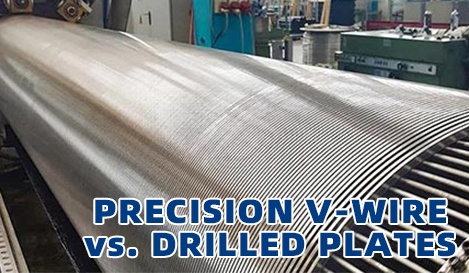

The Johnsonslot V-Wire Solution: Our wedge wire features a distinct triangular profile. This creates a Two-Point Contact at the slot opening. Because the slot widens inwardly (v-shaped), any particle that passes the surface is immediately released by the flow.
"If a particle passes the surface of a V-wire screen, it is 100% guaranteed to pass through, ensuring a continuous self-cleaning cycle."
2. Comparative Technical Data: Wedge Wire vs. Drilled Plates
| Performance Feature | Drilled/Milled Plate | Precision Wedge Wire |
|---|---|---|
| Slot/Hole Geometry | Cylindrical (Prone to plugging) | V-Shape (Self-cleaning) |
| Open Area Ratio | Typically 10% - 18% | Up to 35% - 50% |
| Fiber Fractionation | Low Precision | High Precision (±0.01mm) |
| Energy Demand | High (Turbulent Friction) | Low (Laminar Flow) |
3. Structural Integrity in High-Consistency (HC) Environments
Pressure screen baskets operate under intense Cyclic Loading. A drilled plate, while rigid, can suffer from stress cracks around the hole edges due to the manufacturing process.
Johnsonslot utilizes advanced Resistance Welding technology. Each intersection of profile wire and support rod is fused at the molecular level. This creates a high-strength cage that maintains slot width precision even under the 50Hz+ pulses of high-speed rotors. Our use of Duplex 2205 further ensures resistance to stress corrosion cracking (SCC) in harsh chemical pulping stages.
4. The ROI of Precision: Slashing Operational Costs
Switching to precision wedge wire is an investment in mill uptime. The financial benefits are realized through:
Reduced Pumping Energy: Higher open area reduces the pressure drop (ΔP), allowing pumps to operate at lower RPMs.
Improved Reject Rates: Precise slot control ensures long fibers stay in the accept stream while contaminants are efficiently removed.
Extended Component Life: Reduced friction minimizes wear on both the basket and the rotor foils.
