​​Wedge Wire Screen Working Principle And Advantages​

Wedge wire screens are precision-engineered filtration components essential for high-efficiency solid-liquid separation across mining, water treatment, and oil/gas industries. Their unique structural design enables superior performance where conventional screens fail.


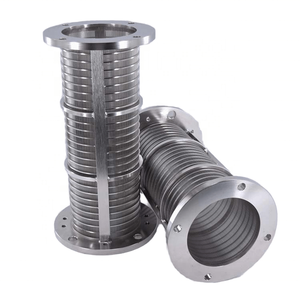

Structural Engineering

Core Components

  • Surface Profiles: V-shaped wires creating self-cleaning slots

  • Support Profiles: Circular cross-rods with tensile strength ≥650 MPa

  • Laser Welding: ≤0.05mm heat-affected zone (HAZ) for joint integrity

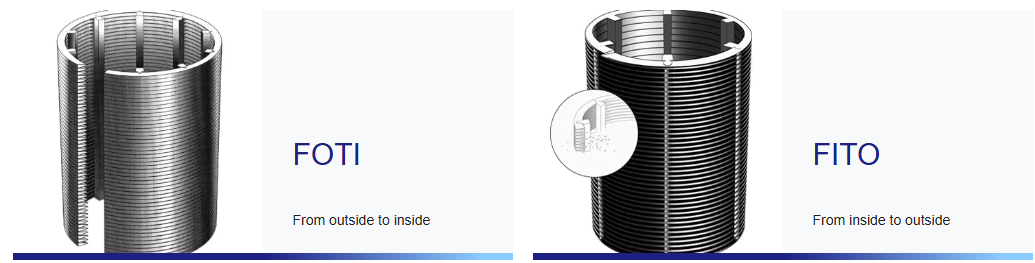

Filter direction

Flow Direction Application Pressure Resistance
Flow-out-to-in Mining slurry dewatering 16 MPa
Flow-in-to-out Potable water filtration 25 MPa




Flow Direction


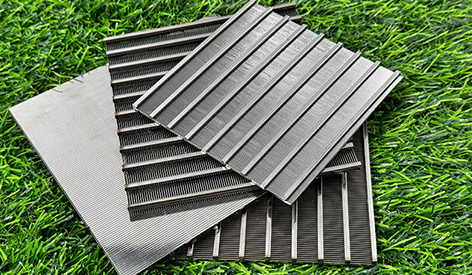

Performance Advantages

1. Precision Filtration

  • Slot width control: 0.10-3.00mm (±0.02mm tolerance), ensure the effective retention of filter medium.

  • Slot uniformity: CV≤1.5% across screen surface

  • Wedge wire screen has a larger circulation area compared with other screens.

2. Anti-Blocking Design

  • V-wire apex creates shear forces that dislodge particles

  • Wedge wire screen has a larger circulation area compared with other screens


3. High Flow Capacity

Screen Type Open Area % Flow Rate (m³/m²/h)
Wedge Wire 35-50 220-350
Perforated Plate 15-25 90-140

4. Extreme Durability

  • 304,316L with strong corrosion resistance and high temperature resistance performances and can totally adapt to various harsh environment

  • It has high mechanical strength and can withstand high pressure drop.

Industry Applications

Mining & Minerals

  • Copper concentrate dewatering: 320 TPH capacity at 45% solids

  • Tailings management: reduction in water consumption

Water Treatment

  • Seawake intake screens: protect pumps and turbines from harmful debris.

  • Wastewater pretreatment: 80μm slot accuracy

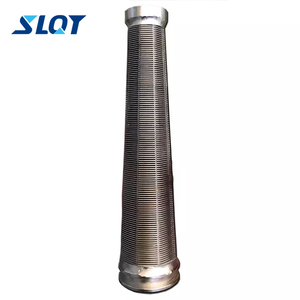

Oil & Gas

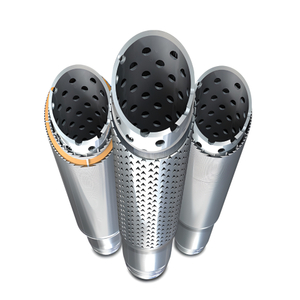

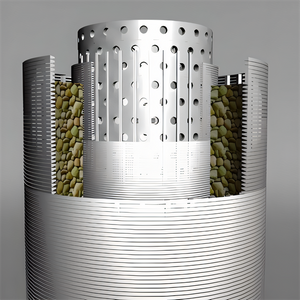

  • Sand control screens: API 19SS compliance for SAGD wells

  • Produced water filtration: The anti-corrosion ability of sodium hydroxide

Food & Pharma

  • Beer Wort Filtration

  • Pharmaceutical Crystallization

Energy & Recycling

  • Biomass Power Generation

  • Lithium Battery Recycling

Emerging Industries

  • Green Hydrogen Production

  • Carbon Capture Amine Filtration


Slot adopt internationally advanced welding technology to ensure our products have significant advantages in quality, filtration accuracy, and durability, empowering industrial separation and becoming your trusted partner.
